Using PTO Master Shield (If Equipped)

CAUTION:

RXA0142439
RXA0142439-UN-11JUN14

RXA0142440
RXA0142440-UN-11JUN14

RXA0142441
RXA0142441-UN-11JUN14

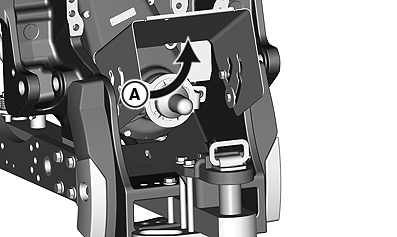

A - Raised Position

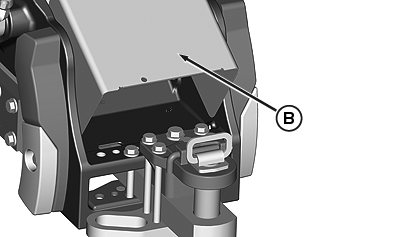

B - Lowered Position

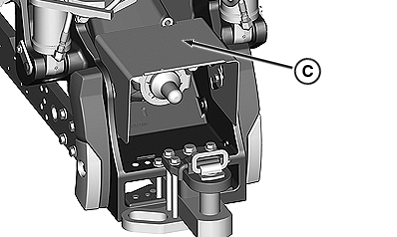

C - Standard Position

Avoid possible injury. Tractor master shield (A) should be in place at all times except for special applications as directed in the implement operator's manual. Do not use shield as a step.

Master shield can be tipped up in raised position (A) to provide clearance while connecting PTO shaft. DO NOT operate PTO with shield in raised position (A).

Master shield (B) can be lowered to improve drawbar visibility, when drawbar is being used without PTO.

TO84419,000010A-19-20140616
