Using Liquid Ballast

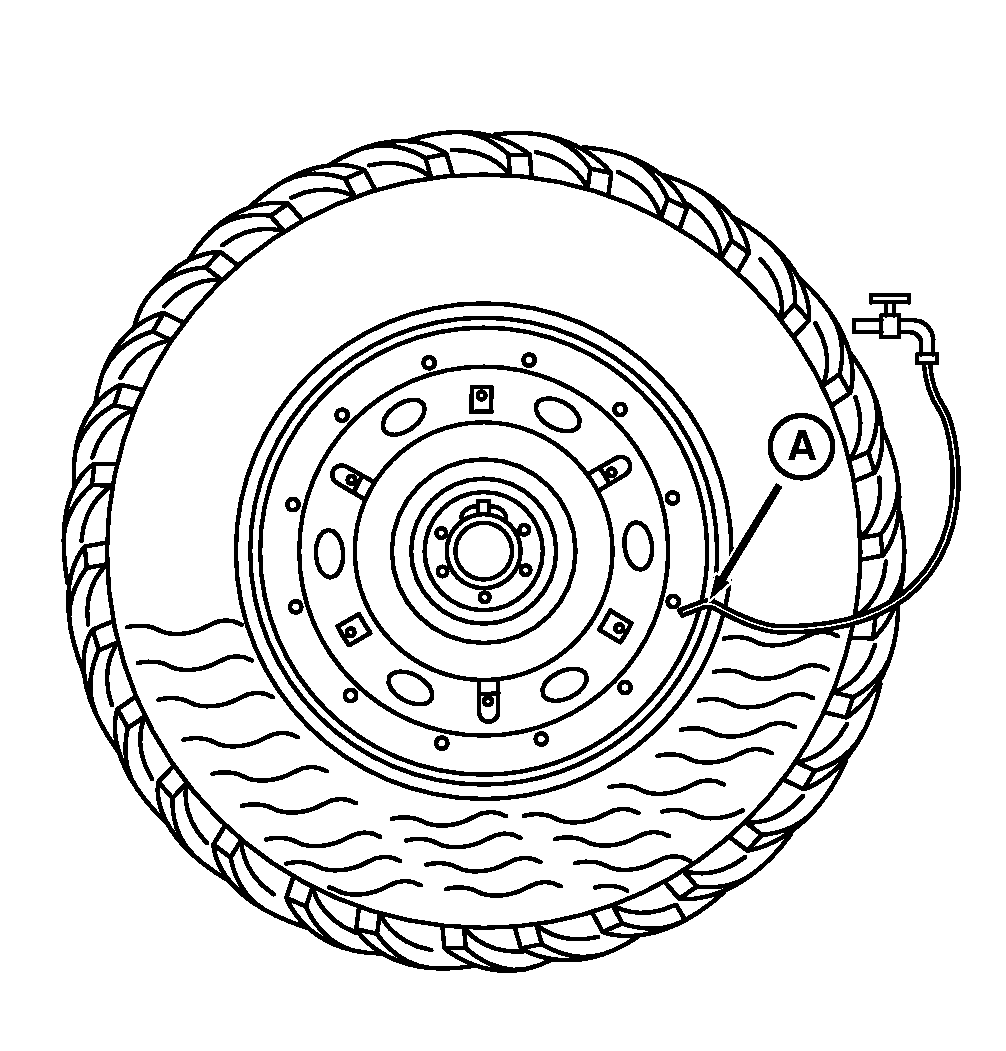

RW71542-UN-05SEP00
A - Valve
Fill tube-type or tubeless tires up to valve level (40 percent full) with valve (A) in the 4 o'clock position. Radial and bias tires hold the same amount of liquid. When putting liquid in rear tires, make sure all tires on the axle have the same amount of liquid fill.
|
Liquid Weight per Tire |
||
|---|---|---|
|
Tire Size |
40% Fill |
75% Fill |
|
710/70R38 |
462 kg (1019 lb) |
924 kg (2037 lb) |
|
800/70R38 |
639 kg (1409 lb) |
1270 kg (2800 lb) |
|
850/60R38 |
477 kg (1052 lb) |
954 kg (2103 lb) |
|
20.8R42 |
340 kg (748 lb) |
682 kg (1504 lb) |
|
520/85R42 |
325 kg (717 lb) |
655 kg (1444 lb) |
|
620/70R42 |
390 kg (859 lb) |
779 kg (1717 lb) |
|
710/70R42 |
523 kg (1154 lb) |
1047 kg (2308 lb) |
|
18.4R46 |
301 kg (664 lb) |
595 kg (1312 lb) |
|
480/80R46 |
274 kg (604 lb) |
548 kg (1208 lb) |
|
520/85R46 |
351 kg (774 lb) |
703 kg (1550 lb) |
|
480/80R50 |
288 kg (635 lb) |
575 kg (1268 lb) |
|
900/50R42 |
532 kg (1173 lb) |
1065 kg (2348 lb) |
CAUTION: Avoid possible injury. Installing liquid ballast requires
special equipment and training. See your John Deere Dealer or a tire
service store.
IMPORTANT: Liquid ballast is not preferred. Liquid weight greatly increases tire stiffness at lower operating pressures, and greatly reduces ride performance.
Use calcium chloride to prevent water from freezing. A mixture of 3.5 lb of calcium chloride per gallon (0.42 kg per liter) will not freeze solid above -50°F (-45°C).
IMPORTANT: A maximum liquid fill of 40 percent is recommended for better tractor performance.
NOTE: Use of alcohol as liquid ballast is not recommended.
In areas where freezing is not a problem and water is used as a ballast, multiply the weight shown in the table by 0.8.
|
