Freeing a Mired Tractor

TS1645-UN-15SEP95

TS263-UN-23AUG88

CAUTION: Use only a John Deere™ tow cable attached directly to tractor drawbar support. Tractor could be equipped with tow cable as standard equipment or field installed tow cable kit is available through John Deere™ Parts.

Clear area of people and other hazards before moving.

Attempting to free a mired machine can involve safety hazards.

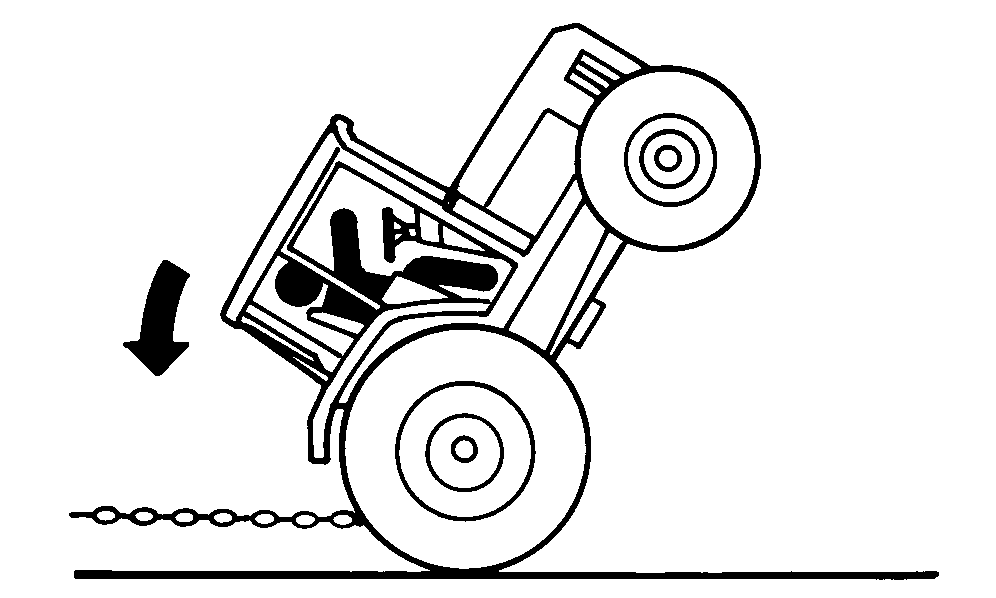

When free, mired tractor can tip rearward or towed tractor can overturn. Tow chain, tow bar, or John Deere™ tow cable could fail and recoil from stretched condition.

Dig mud from behind rear wheels. Place boards behind wheels to provide a solid base and try to back out slowly. If necessary, dig mud from front of wheels and drive slowly ahead.

Unhitch any towed implements.

If rear of tractor is accessible, attach towing device to drawbar support and pull out tractor backwards.

IMPORTANT: Avoid damaging transmission/axle and hydraulic system. Never attempt to start tractor by towing.

If possible, run engine at least 1250 rpm to provide lubrication, steering and brakes. Have an operator steer and brake tractor.

Front weight support is not intended for pushing other tractors or implements or for securing chains or cables as tow points.

Never attempt to free stuck tractor by itself. Tow tractor from front or rear as straight as possible. Pulling at an angle causes heavy side loads and can cause damage to frame.
