Lubricating Lift Cylinders and Rockshaft

RXA0141976-UN-02JUN14

RXA0141977-UN-20JUN14

Rockshaft Assembly

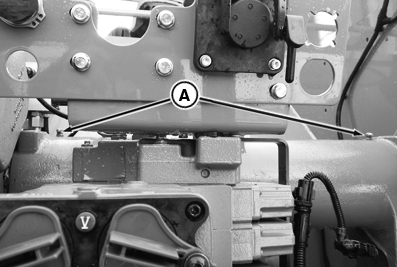

A - Rockshaft Lubrication Fittings

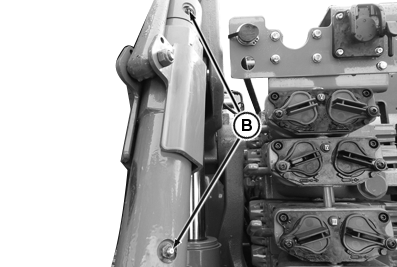

B - Lift Cylinder Pin Lubrication Fittings

Lubricate lift cylinder pin fittings (A) on both sides of tractor. Lubricate left-hand (B) and right-hand (C) side rockshaft fittings.
