AUTO Exhaust Filter Cleaning Mode—Final Tier 4 and Stage IV Engines

RXA0139510-UN-24FEB14

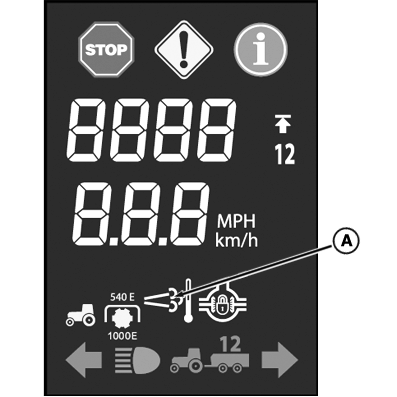

A - Exhaust Filter Cleaning Indicator

Auto mode allows Exhaust Filter System to perform exhaust filter cleaning as required. Cornerpost Display Indicators and CommandCenter™ prompts provide operator information related to exhaust filter system activity.

Exhaust Filter Cleaning Indicator (A) illuminates when exhaust filter system is performing exhaust filter cleaning.

IMPORTANT: During exhaust filter cleaning operation, there may be higher exhaust gas temperatures and engine may operate at elevated idle.

Exhaust Filter Restricted—Depending on operating conditions, Exhaust Filter System may request a change in operation. CommandCenter™ prompts recommend operational changes.
