Change Transmission/Hydraulic Reservoir Suction Screens/Rear Axle/Steering Oil and Filters

RXA0141858-UN-02JUN14

Hydraulic Oil Reservoir Drain Plug-Located Under Hydraulic Reservoir

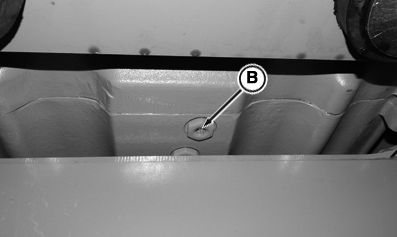

RXA0142046-UN-03JUN14

Powershift Transmission Drain Plug

RXA0142047-UN-03JUN14

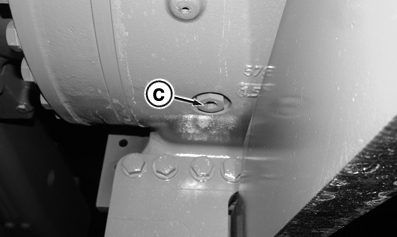

Left-Hand Axle Drain Plug

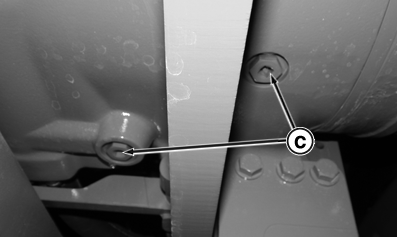

RXA0142048-UN-03JUN14

Right-Hand Axle Drain Plugs

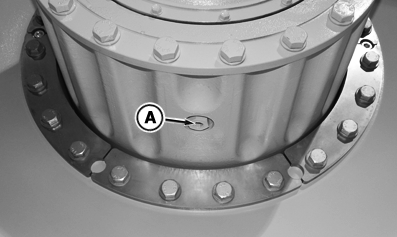

RXA0142049-UN-11JUN14

Outboard Planetary Drain Plug

A - Reservoir Drain Valve

B - Powershift Transmission Drain Plug

C - Three Axle Drain Plugs

D - Outboard Planetary Drain Plug

IMPORTANT: Carefully follow drain and fill procedure to prevent premature transmission/axle failure.

NOTE: Calibrate transmission if shift characteristics change after system oil and filter change. See Transmission Calibration in General Service section of this Operator’s Manual.

The transmission, hydraulic reservoir and rear axle are all included in the hydraulic system. Change all hydraulic filters at this interval. See all filter changes in this section.

An oil drain container with a maximum capacity of 310.9 L (82.1 gal) should be used.

1. Park tractor on level surface with drain plugs on each wheel hub oriented downward.

2. Allow hydraulic oil to cool for 15 minutes.

   NOTE: Full system oil capacity is 310.9 L (82.1 gal). Secure drain pan of sufficient capacity.

3. Remove drain plug (A), located under hydraulic reservoir, to drain oil from reservoir.

4. Remove Powershift transmission drain plug (B).

5. Remove three rear axle drain plugs (C).

6. Remove plug (D) from each outboard planetary.

7. Replace all transmission, rear axle and outboard planetary drain plugs. Tighten to specifications.

   Item	Measurement	Specification
   Transmission Drain Plugs	Torque	55 N·m (40 lb-ft)
   Rear Axle and Outboard Planetary Drain Plugs	Torque	70 N·m (52 lb-ft)

8. IMPORTANT: When oil is drained from the transmission for a scheduled oil change, the transmission will need to be pre-filled with 38 L (10 gal) of Hy-Gard™ (JDM J20C) oil ONLY or damage could occur to transmission when the tractor is started.

   To ensure proper shift quality, oil meeting Hy-Gard™ or JDM J20C specifications must be used. Shift quality problems and/or transmission damage may occur if the specifications are not followed. See Transmission/Axle and Hydraulic Oil in Fuel, Lubricants and Coolant section of this Operator’s Manual.

   NOTE: Parts removed to better show suction screen.

   Transmission/Hydraulic/Axle System Capacities (with Filter)
   Hydraulic Reservoir Volume Reference Marks
   .. FULL COLD Mark .............. 90.9 L (24.0 gal)
   .. MIN COLD Mark .............. 79.5 L (21.0 gal)
   .. High Volume Takeout Oil Mark .............. 126.4 L (33.4 gal)
   .. Reservoir Volume Between “Min Cold” and “Full Cold” Marks .............. 11.4 L (3.0 gal)
   Transmission/Hydraulic Reservoir/Rear Axle:
   .. Total System Volume .............. 300 L (79.3 gal)

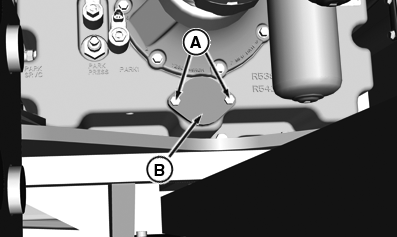

   RXA0142737-UN-20JUN14

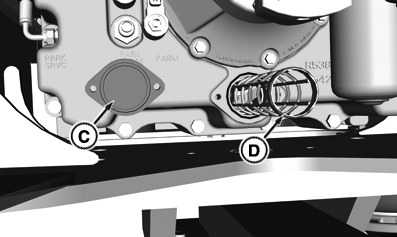

   Powershift Transmission-Rear View Shown


   RXA0142738-UN-20JUN14

   A - Suction Screen Cover Cap Screws

   B - Suction Screen Cover

   C - Cover O-Ring

   D - Suction Screen

   Remove suction screen cover cap screws (A) and remove cover (B).

---




9. Remove O-ring (C) from in cover groove and discard O-ring.

10. IMPORTANT: Inspect screen for damage or contamination. Clean or replace as necessary.

    Remove suction screen (D) from transmission housing.

11. Clean suction screen (D) with solvent and dry with compressed air or clean cloth.

12. Reinstall suction screen into transmission housing.

13. Lubricate new cover O-ring with clean hydraulic oil and place in cover O-ring groove.

14. Reinstall suction screen cover and tighten cap screws to specification.

    Item	Measurement	Specification
    Suction Screen Cover Cap Screws	Torque	55 N·m (40 lb.-ft.)

15.
    RXA0142342-UN-12JUN14

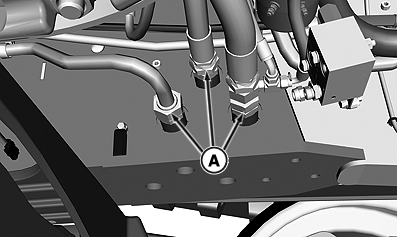

    Hydraulic Oil Filters

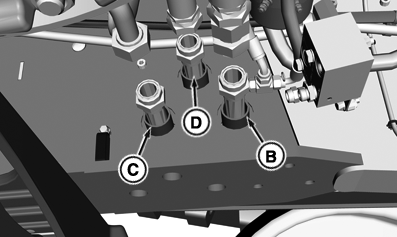

    RXA0142343-UN-03JUL14

    PowerShift Transmission Filters

    A - Hoses

    B - Charge Pump Suction Screen

    C - Steering Charge Pump Suction Screen

    D - Axle Lube Suction Screen

    Remove hoses (A).

---




16. Remove charge pump suction screen (B) and clean with a solvent.

17. Remove steering pump suction screen (C) and clean with a solvent.

18. Remove axle lube suction screen (D)and clean with a solvent.

19. Reinstall all three screens and tighten to specification.

    Item	Measurement	Specification
    Screen Fittings	Torque	217 N·m (160 lb.-ft.)

20. Reinstall hoses. Tighten to specification.

    Item	Measurement	Specification
    Hoses	Torque	190 N·m (140 lb.-ft.)

21. NOTE: Replace transmission oil filter, hydraulic oil filters, steering pump filter, and rear axle filter now, before performing the hydraulic prefill oil procedure.

    Apply thin layer of oil to each filter gasket before installation.

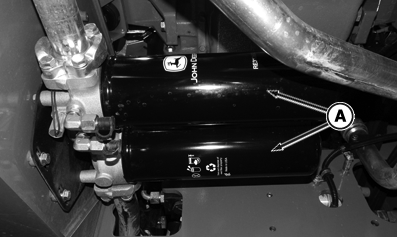

    RXA0142053-UN-03JUN14

    Hydraulic Oil Filters (Under the Engine)

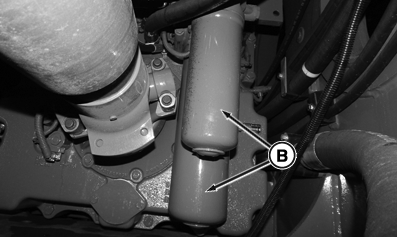

    RXA0142052-UN-03JUN14

    Powershift Transmission Filters


    RXA0142055-UN-03JUN14

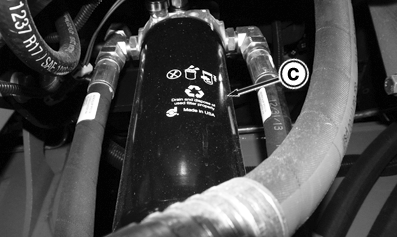

    Steering Filter

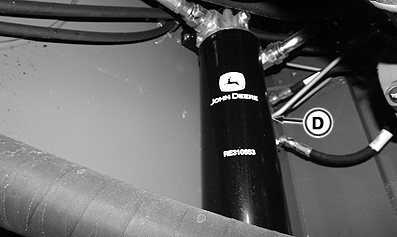

    RXA0142054-UN-03JUN14

    Rear Axle Filter

    A - Hydraulic Oil Filters

    B - Transmission Filters

    C - Steering Filter

    D - Rear Axle Filter

    Remove and replace both hydraulic filters (A) under the engine.

---




22. Tighten one half turn after seal contacts filter housing base.

23. Remove transmission oil filters (B) at rear of transmission.

24. Install new filters and tighten one-half turn after gasket contacts filter housing base.

25. Remove and replace steering filter (C). Tighten filter one half turn after seal contacts the base.

26. Remove and replace rear axle filter (D). Tighten filter.

27. Clean the hydraulic vent filter.

28. NOTE: Fill transmission with limited quantity of oil to ensure that transmission lube pump startup is wet. The balance of refill oil is added into the hydraulic reservoir or rear axle.


    RXA0142051-UN-10JUN14

    Transmission Pre-Fill Tube


    RXA0142211-UN-10JUN14

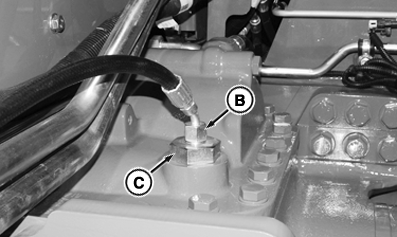

    Rear Axle Housing

    A - Transmission Prefill Tube Plug

    B - SCV Oil Return Hose

    C - Rear Axle Fitting

    Remove transmission prefill tube plug (A) in frame opening on right side of transmission.

---




29. Prefill with 37.9 L (10 gal) of John Deere HY-GARD® or JDM J20C hydraulic oil using transmission prefill tube.

30. Disconnect the SCV oil return hose (B) from rear axle fitting (C).

31. Remove axle fitting from axle housing.

32. Use a funnel to prefill the rear axle with 160.9 L (42.5 gal) of John Deere HY-GARD® or JDM J20C hydraulic oil after transmission/hydraulic/axle systems are drained for service

33. Install axle fitting in axle housing and attach return hose connector. Tighten fitting and connector to specifications.

    Item	Measurement	Specification
    Rear Axle Fitting	Torque	190 N·m (140 lb.-ft.)
    Return Hose Connector	Torque	24 N·m (18 lb.-ft.)

34. NOTE: After filling the hydraulic reservoir, start engine and run for a few minutes to circulate oil through out the system. Shut engine off and wait 5 minutes to allow oil to stabilize before determining reservoir oil level. Use rear axle fill tube (B) to add small quantities of oil during normal field operation.


    RXA0141859-UN-05JUN14

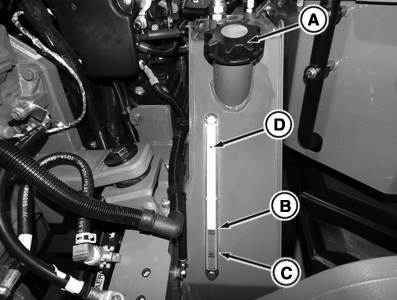

    Hydraulic Oil Reservoir

    A - Reservoir Fill Cap

    B - FULL COLD Mark

    C - MIN COLD Mark

    D - High Volume Oil Takeout Mark

    Remove reservoir fill cap (A) to add remaining John Deere HY-GARD® or JDM J20C hydraulic oil volume to hydraulic reservoir, next to the cab entry steps.

    NOTE: Clean the hydraulic oil system vent filter, at rear of cab. See CLEAN HYDRAULIC OIL SYSTEM VENT FILTER in this Section.

    The volume capacity between Min “Cold” (C) and Full “Cold” (B) marks is 11.4 L (3 gal).

    If oil level is visible between marks “Min Cold” (C) and “Full Cold” (B), tractor can be used for normal operation.

---




35. Follow oil check procedure for correct oil level.

    OIL LEVEL CHECK PROCEDURE:

    1. IMPORTANT: DO NOT start engine if oil level is below MIN COLD mark (C). Add Hy-Gard JDM J20C hydraulic oil using hydraulic reservoir fill cap.

       Transmission lever should be in PARK.
    2. Start engine and idle at 1200 rpm for 5 minutes.
    3. Shut engine OFF and wait 5 minutes for oil level to stabilize.
    4. Check to ensure transmission/hydraulic/axle oil level is visible between “Full Cold” (B) and “Min Cold” (C) marks in sight gauge.



    NOTE: Hydraulic oil reservoir does not hold all system hydraulic oil capacity. If possible check oil level before first start of day. Ambient temperature should be 7° C. (45° F) or above.

    For applications and implements requiring high volumes of oil transfer (for example - large air seeders or pulling 3 scrapers), hydraulic reservoir can be filled up to High Oil Volume Takeout Oil Mark (D). 126.4 L (33.4 gal) above MIN COLD (C).

    As the tractor and hydraulic system get hot, the oil level will rise (increase) in the reservoir.

    Oil level in the reservoir will fluctuate depending upon volume of oil exchanged with an attached implement. The pressure sensor will send alert if pressure falls too low due to low oil level.

    NOTE: The powershift transmission only needs to be recalibrated if transmission shift characteristics change after hydraulic/transmission/axle oil and filters are changed. See Powershift Transmission Calibration in General Maintenance and Inspection Section.

36. IMPORTANT: Excess hydraulic oil can result in decreased engine power and decrease fuel economy.

    If oil level is above the “Full Cold” mark, remove oil to bring it down to the “Full Cold" mark level.

    The recommended method to remove reservoir oil is using the reservoir drain plug and direct oil into a container.
