Update Display Software

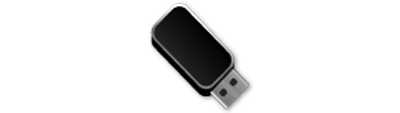

PC15348
PC15348-UN-11JUL13

USB Drive


Determine Software Versions on Display

Version numbers for all installed software packages are available in Version Information tab in Software Manager.

Download Software Updates

Software updates are available for download from:

https://my.deere.com/software-downloads/software-manager/

The following items are available:

  • Software release notes
  • Software Manager utility used to download software to USB drive
  • Instructions for using Software Manager utility

Once USB drive has latest software, take it to machine to install update.

PC15349
PC15349-UN-11JUL13

A - Install Button

B - Progress Indicator

C - Install Successful


Install Software Updates

  1. Insert USB drive into USB port in machine or on display.

  2. When "USB Drive Options" page is displayed, select Install Software. Installations & Updates tab of Software Manager is displayed.

  3. Only software packages that are newer than what is currently installed are displayed. All packages are selected by default.

  4. Select Install button. If an update does not start, follow the onscreen messages to resolve conflicts.

    CAUTION: During software installation:

    All applications will be shut down.

    No system messages will be displayed.

    To prevent injury, ensure the machine is in Park and maintain electrical power throughout the installation process.

    Do not remove USB drive.

  5. Progress indicators display status of each installation step.

  6. Message displays when software update is finished. Some software packages require a reboot to finish installation. Select Reboot button to restart display.

  7. Remove USB drive and take back to computer. Run Software Manager Utility to upload return files.

    NOTE: Return files contain software version information and are used to assist dealers with supporting display and machine.

Troubleshooting

When a software package fails to install, system rolls back all software to version before update started.

Record error message if software update fails. Remove files from USB drive, and reload software update to USB drive. Repeat software installation process.

If software update continues to fail, contact a John Deere dealer.

System Rollback

System rollback reverts all installations and updates that have occurred since selected date.

  1. Select System Information tab.

  2. Select System Rollback button.

  3. Select Recent Updates input box.

  4. Select desired software installation date and time. Select OK button.

    NOTE: Dealer update identifies software related to a machine controller update. Cannot roll back to a version previous to a dealer update.

  5. Select Rollback button to start System Rollback.

    CAUTION: During system rollback:

    All applications will be shut down.

    No system messages will be displayed.

    To prevent injury, ensure the machine is in Park and maintain electrical power throughout the system rollback process.

    Do not remove USB drive.

  6. If Rollback was successful, a message is displayed.

  7. Select Reboot button or display automatically reboots after 30 seconds.

CZ76372,000063F-19-20131202
