CommandARM™ ISOBUS Shortcut Button (ISB)

RXA0136449-UN-06NOV13

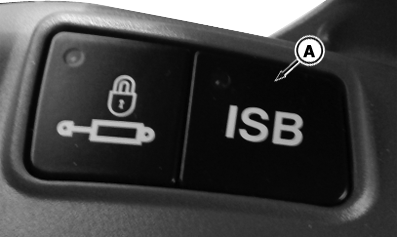

CommandARM™ ISOBUS Shortcut Button

A - ISOBUS Shortcut Button (ISB)

In an ISOBUS-system operator can activate function of implement over ISOBUS via Implement’s Operator Interface on display. Read ISOBUS controller’s operator’s manual for more information.

After activation, operator can change screen of display in order to operate another implement or interact with other applications.

Deactivation of functions on first implement is not possible unless operator manually switches back to according screen of first implement. ISB provides a direct method to inform all ISOBUS participants about operators desire to deactivate functions that were activated by an ISOBUS control.

CAUTION: Read appropriate operator’s manual. ISB button function is proprietary to implement manufacturer. Verify button function in a safe and open area that is clear of bystanders.

ISOBUS Shortcut Button (ISB): Pressing ISB button (A) sends “Stop All Implement Operations” signal out on ISOBUS. Reaction on ISB is proprietary to receiving control unit.

Example: Implement currently using ISOBUS Class 3 automation (see Tractor Implement Automation™ section of Operator’s Manual) goes to its safe state.
