Software Manager

PC15346-UN-11JUL13

Software Manager

Use Software Manager to update software, activate features, and find software version details.

Navigate to Software Manager

1. Select Menu.

2. Select System tab.

3. Select Software Manager application.

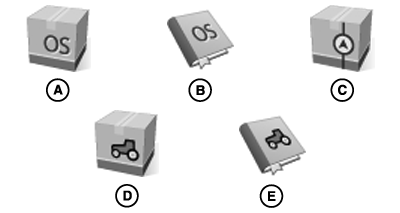

PC17392-UN-28MAY14

A - Generation 4 OS

B - Generation 4 OS Help

C - AMS Applications

D - Tractor Applications

E - Tractor Applications Help

Software Packages

Generation 4 display software and help files are organized into packages. Each package is listed individually on Installations and Updates tab and Version Information tab.

Generation 4 Operating System

• Contains display operating system and basic applications.

Generation 4 Operating System Help

• Contains help files for display applications.

Tractor Applications

• Contains tractor software. A John Deere dealer with Service ADVISOR™ is required to install package.

Tractor Applications Help

• Contains help files for tractor applications. Package may be installed without Service ADVISOR™.

AMS Applications

• Contains display software.

NOTE: Currently, Generation 4 display does not update connected controllers, such as StarFire™ receivers.

Onscreen Help packages include each language that the display supports.
