Remote Raise and Lower Switches (If Equipped)

CAUTION:

RXA0131100
RXA0131100-UN-13MAR13

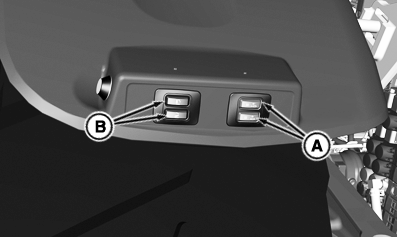

Fender Mounted Switches—Right Fender Shown

RXA0134416
RXA0134416-UN-01AUG13

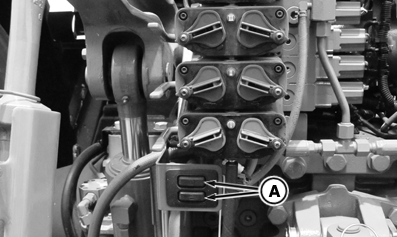

Stack Mounted Switches

RXA0134417
RXA0134417-UN-01AUG13

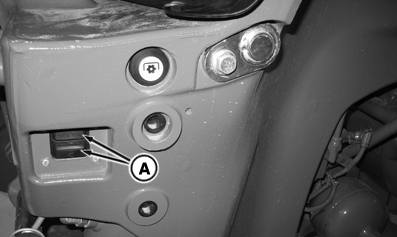

Front Hitch Switches

A - Remote Hitch Raise/Lower Switches

B - SCV III Extend/Retract Switches

To prevent injury or damage caused by tractor movement, be sure transmission is in PARK position before using remote raise and lower switches. Stay clear of interference points when using remote raise and lower switches.

When remote hitch switches (A) are pressed, hitch moves slowly but increases speed longer hitch switch is held.

Press and hold remote hitch raise/lower switches (A) to operate hitch. SCV III extend/retract switches (B) are connected to hydraulic center link (if equipped).

NOTE: Hitch command lever cannot be used simultaneously with remote raise/lower switch.
