Adjusting Front Hitch Drop Rate

IMPORTANT: Excessive drop speed may cause injury or machine damage. Fully lowering implement should take at least 2 seconds.

1. Select Menu.


   RXA0132258-UN-22MAY13

   Menu →Tractor Settings Tab→Front Hitch Icon

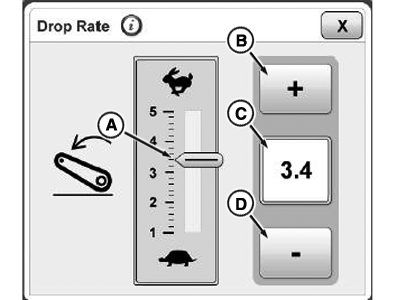

   RXA0132458-UN-28JUN13

   Front Hitch Drop Rate Module

   A - Drop Rate Indicator

   B - Increase Value Button

   C - Input Box

   D - Decrease Value Button

---




2. Select Tractor settings tab.

3. Select Front Hitch icon.

4. Select Front Hitch Drop Rate module.

   NOTE: Changes to rate of drop are immediate.

   NOTE: Changes can be made to front hitch drop rate by increase value button (B) and decrease value button (D).
