Adjusting Front Hitch Raise Rate

1. Select Menu.

2. Select Tractor settings tab.

3. Select Front Hitch icon.

4. Select Hitch Raise Rate Module.


   RXA0132258-UN-22MAY13

   Menu → Tractor Settings Tab→Front Hitch Icon


   RXA0132459-UN-27JUN13

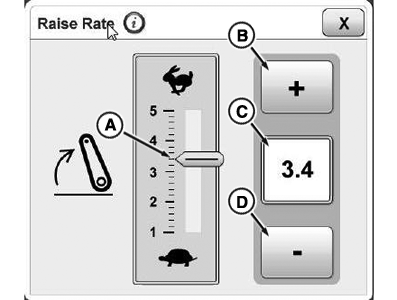

   Front Hitch Raise Rate Module

   A - Raise Rate Indicator

   B - Increase Value Button

   C - Input Box

   D - Decrease Value Button

   NOTE: Changes to raise rate are immediate.

   NOTE: Changes can be made to front hitch raise rate by increase value button (B) and decrease value button (D).

---
