Changing Optional Front PTO Shafts

Front PTO is factory equipped with one of two optional front PTO shafts:

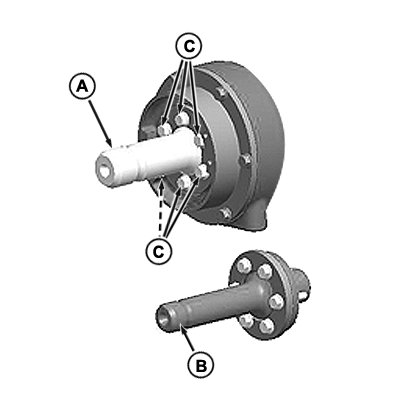

RXA0135433-UN-11SEP13

Front PTO With Two Optional PTO Shafts

A - 1-3/4 20 Spline Shaft

B - 1-3/8 21 Spline Shaft

C - M8 Cap Screws

• 1-3/4 20 Spline Shaft
• 1-3/8 21 Spline Shaft

Additional optional shafts are available through your John Deere dealer.

To change shaft, remove six M8 cap screws (C) remove factory installed shaft and install new shaft. Install six cap screws and torque to specification.

Item	Measurement	Specification
Front PTO Cap Screws	Torque	40 N·m (30 lb.-ft.)
