Front Hitch Single Acting Mode And Position & Set Points

1. Select Menu.


   RXA0132258-UN-22MAY13

   Menu →Tractor Settings Tab→Front Hitch Icon


   RXA0142718-UN-02JUL14

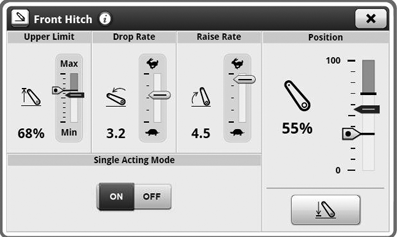

   Front Hitch Single Acting Mode On


   RXA0135525-UN-18SEP13

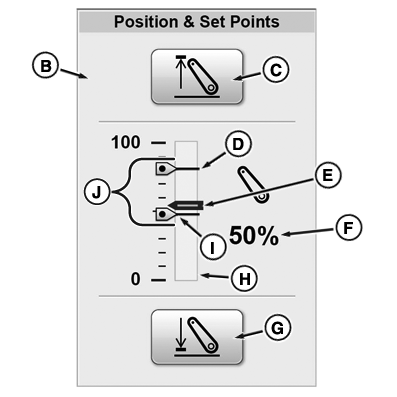

   Position and Set Points

   A - Front Hitch Single Acting Mode On/Off Icon

   B - Position And Set Points Module

   C - Upper Set point Set Button

   D - Upper Set point Indicator

   E - Position Indicator

   F - Position Percentage

   G - Lower Set point Set Button

   H - Front Hitch Position Slider Gauge

   I - Lower Set point Indicator

   J - Motion Range Using Detent Operations

---




2. Select tractor settings tab.

3. Select front hitch icon.

4. Select single acting mode icon (A).

When front hitch single acting mode is ON, hydraulics raise hitch without restriction but amount of downforce applied to lower hitch is reduced.

Single acting mode can only be enabled when front hitch is in float or in top 10% of travel range and front hitch control lever is in center position.

Position and set points module (B), displays current front hitch position (E), lower set point (I), and upper set point (D). Hitch position indicator (E) is shown as a percentage (F) of hitch position slider gauge (H). When front hitch is in full down position, position percentage (F) is 0%. When hitch is fully up, position percentage (F) is 100%.

In order to set lower set point (I), move position indicator (E) to the desired position using front hitch lever or joystick, then press lower set point set button (G).

Press upper set point set button (C) to reset upper position set point to current position.

Performing an extend detent operation with front hitch control lever or joystick causes front hitch to move to upper set point position (D) provided hitch starts from below this point.

Performing a retract detent operation with front hitch control lever or joystick causes front hitch to move to lower set point position (I) provided front hitch starts above this point.

NOTE: Exception: If tractor is moving during a retract detent operation, front hitch moves to lower set point from any starting position.

Hitch can be moved above upper set points or below lower set point by using front hitch control lever or joystick in proportional control or remote switches.
