Rear Hitch Lock/Damping

CAUTION: To prevent possible injury and equipment damage, lock hitch before transporting.

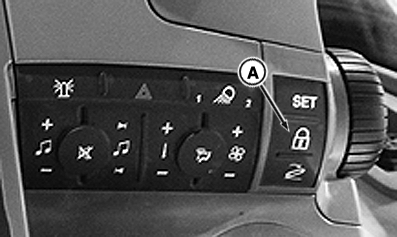

RXA0143181-UN-03JUL14

Resume Button

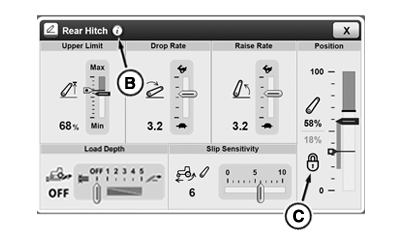

RXA0143182-UN-03JUL14

A - Lock Button

B - Advanced Settings Icon

C - Lock Damping Indicator

Hitch Lock

Before transport, or when hitch-mounted implement is not in use, engage rear hitch lock/damping

1. Raise hitch with control lever or hitch depth adjust dial.

2. Press lock button (A).

When hitch lock damping indicator (C) is visible, hitch will not respond to hitch depth adjust dial and hitch control lever cannot lower hitch.

Hitch control lever can raise hitch back up to locked position with lever held in detent position.

If hitch leaks down while tractor is stopped, hitch returns to locked height when tractor begins moving.

To unlock hitch, press lock button (A) again.

Hitch Damping

Hitch lock button also turns transport damping ON/OFF when enabled. Hitch damping can be enabled or disabled in advanced hitch settings page (B).

Hitch damping can occur when transporting hitch-mounted equipment.
