Using Draft Control

RXA0128369-UN-25SEP12

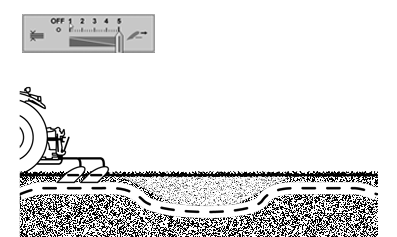

High Response Causes More Depth Variation If Soil Varies

RXA0128366-UN-30APR13

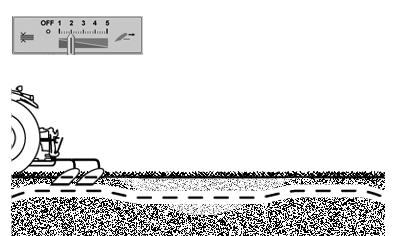

Middle Response Controls Depth Better If Soil Varies

RXA0143421-UN-08JUL14

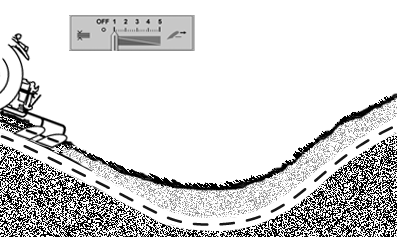

Low Response Causes More Depth Variation In Rolling Terrain

RXA0143422-UN-08JUL14

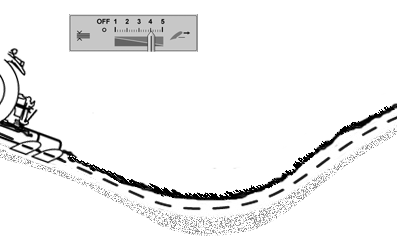

Higher Response Causes Better Depth Control In Rolling Terrain

Use draft control to help maintain operating depth of non floating tillage equipment in rolling terrain, or if tractor altitude/pitch and rear wheel sinkage force implement deeper than desired. If soil density/resistance varies, higher response setting causes more depth variation. Best setting depends on implement type and field conditions.

Higher values provide more/faster draft response. Lower values provide less/slower draft response.

Suggested settings by implement type:

Integral Field Cultivator	4—5
Integral Moldboard Plow	3—5
Semi-Integral Moldboard Plow	2—4
Integral Chisel Plow	2—4
Integral Ripper/Subsoiler	1—3

Use hitch control lever to control/change operating depth.
