Adjust Rear Hitch Upper Limit

1. Select rear hitch upper limit module.


   RXA0133710-UN-16JUL13

   Rear Hitch Shortcut Button on Navigation Bar


   RXA0143173-UN-01JUL14

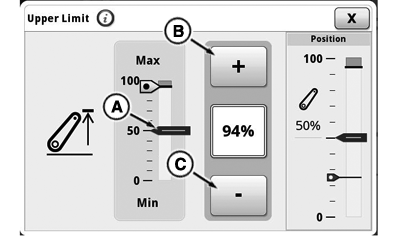

   Rear Hitch Upper Limit Module


   RXA0143175-UN-01JUL14

   Rear Hitch Upper Limit Dial

   A - Upper Limit Indicator

   B - Increase Value Button

   C - Decrease Value Button

   D - Rear Hitch Upper Limit Dial

---




2. To adjust rear hitch upper limit, use increase value button (B) or decrease value button (C).

NOTE: Changes to upper limit are immediate.

Rear hitch upper limit can be adjusted using rear hitch upper limit dial (D).

When the upper limit is the same as the hitch position, hitch follows upper limit.
