Adjust Rear Hitch Drop Rate

CAUTION: Excessive drop speed may cause injury or machine damage. Fully lowering implement should take at least 2 seconds.

1. Select rear hitch drop rate module.


   RXA0133710-UN-16JUL13

   Rear Hitch Shortcut Button on Navigation Bar

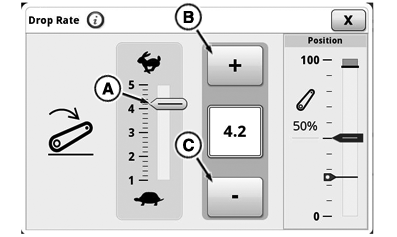

   RXA0143171-UN-01JUL14

   Rear Hitch Drop Rate Module

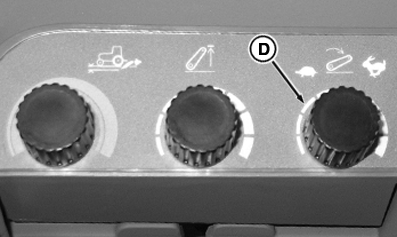

   RXA0143174-UN-01JUL14

   Rear Hitch Drop Rate Dial

   A - Drop Rate Indicator

   B - Increase Value Button

   C - Decrease Value Button

   D - Rear Hitch Drop Rate Dial

---




2. To adjust rear hitch drop rate, use increase value button (B) or decrease value button (C).

   NOTE: Changes to drop rate are immediate.

   Rear hitch drop rate can also be adjusted with rear hitch drop rate dial (D).
