Generation 4 CommandCenter™ Display

PC17356-UN-03DEC13

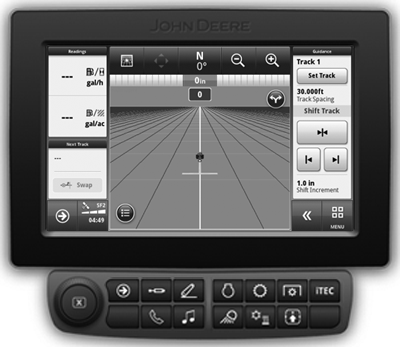

7 Inch Display

PC17355-UN-03DEC13

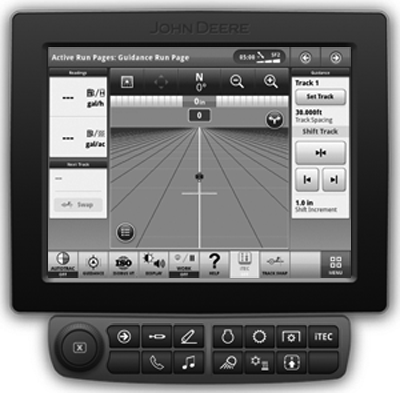

10 Inch Display

The John Deere Generation 4 CommandCenter™ is designed for maximum ease of use and productivity. One software system provides commonality while hardware options provide a range of price and functionality. The CommandCenter™ display is attached to the CommandARM™. There are 7 and 10 inch display options available.

NOTE: Software in Generation 4 CommandCenter™ is on processor, not display.

7 Inch CommandCenter™ Display

• Run Page Modules same as 10 inch display
• Shortcut Keys must be expanded to view.

10 Inch CommandCenter™ Display

• Title Bar displays currently viewed Run Page
• Large Status Center provides more information
• Shortcut Keys are always visible.
