Navigate to Implement Profile

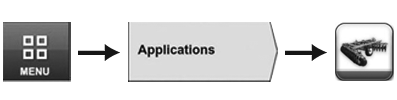

RXA0135344-UN-30AUG13

Menu → Applications Tab → Implement Profile Icon

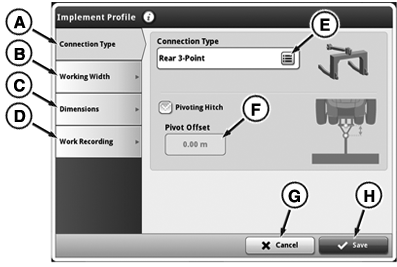

RXA0135339-UN-30AUG13

Implement Profile Page

A - Connection Type Tab

B - Working Width Tab

C - Dimensions Tab

D - Work Recording Tab

E - Connection Type Input Field

F - Pivot Offset Input Field

G - Cancel Button

H - Save Button

1. Select Menu.

2. Select Applications tab.

3. Select Implement Profile icon.
