Three-Camera Video Connectors with Ethernet Cable (If Equipped)

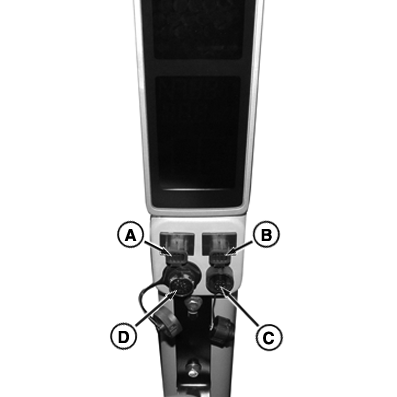

RXA0134950-UN-07AUG13

Integrated Video Harness with Ethernet Cable

A - Ethernet Connector

B - Monitor Display Connector (Available with 4600 processor)

C - ISO 11786 Standard Connector

D - GreenStar™ Connector

GreenStar™ (GS3) 2630 Display can support three video inputs for additional visibility when operating tractor.

NOTE: These video inputs are in addition to the Generation 4 CommandCenter™ Display. Display harnesses are available from your John Deere™ dealer.

Attach a second monitor display to connector (B). This connector is only available with the 4600 Server.

The back of 2630 Display can be also connected to GreenStar™ connector (D) and Ethernet connector (A).

Ethernet cable (A) with GS3 2630 Display allows remote access for dealer, with customer approval, to view operator GS3 2630 Display.

ISO 11786 connector (C) is used to connect to third-party control unit.
