Foot Pedal Mode (If Equipped)

RXA0135636-UN-19SEP13

Foot Pedal

RXA0140646-UN-25MAR14

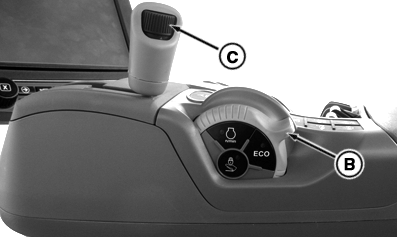

Hand Throttle Control and Set Speed Adjuster Dial

RXA0140615-UN-24MAR14

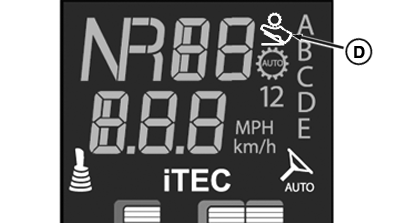

Foot Pedal Mode Indicator Light

A - Foot Pedal

B - Hand Throttle Control

C - Set Speed Adjuster Dial

D - Foot Pedal Mode Indicator

Foot pedal mode is a function that allows the operator to control wheel speed independently of engine speed by using foot pedal (A) while using hand throttle (B) to keep engine at a constant speed.

When the foot pedal is released, vehicle decelerates to a minimum travel speed of 0.5 – 2 km/h (0.3 - 1.2 mph). To come to a complete stop, brake pedal with AutoClutch function must be used.

To cover transport applications with foot pedal only, leave hand throttle in lowest position; engine speed is increased or decreased from drive strategy based on fuel economy settings. When hand throttle is not at its lowest position, engine speed is controlled directly by hand throttle while foot pedal controls wheel speed only.

If engine speed is being held at low rpm via hand throttle, vehicle may not reach wheel speed commanded by set speed adjuster dial (C).

Foot pedal mode is intended for applications where it is important to keep engine speed at a constant rpm independent from wheel speed (mowing for example).

NOTE: If equipped, foot pedal mode indicator (D) is on when foot pedal mode enabled. Indicator goes out when foot pedal mode is disabled.

RXA0133712-UN-16JUL13

Transmission Shortcut Button on Navigation Bar

RXA0140647-UN-25MAR14

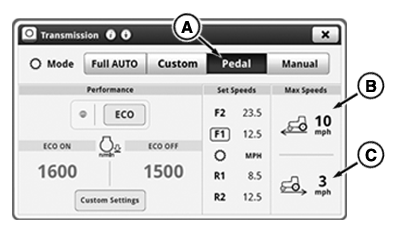

Foot Pedal Mode

RXA0140645-UN-25MAR14

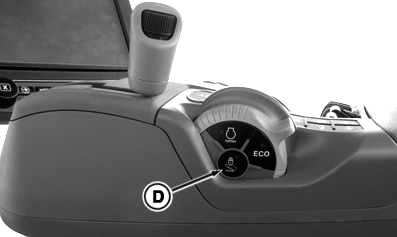

Foot Pedal Lock/Unlock Button

A - Foot Pedal Mode Button

B - Max Forward Speed

C - Max Reverse Speed

D - Foot Pedal Lock/Unlock Button

Enable Foot Pedal Mode

Fuel economy settings and automatic mode functions become active when foot pedal mode is enabled.

1. Place transmission shift lever in PARK position.
2. Press Transmission shortcut button on Navigation Bar.
3. Press Foot Pedal Mode button (A)

Maximum forward and reverse speeds are adjusted using maximum forward (B) and reverse (C) speed module. For more information see IVT™/AutoPowr™ Modes and Setting Maximum Speeds in Operating IVT™/AutoPowr™ Transmission section of this Operator’s Manual.

Lock or unlock foot pedal settings using foot pedal lock/unlock button (D).

NOTE: Foot pedal will not lock if foot pedal lock button is held more than 1 second.

Following are ways to unlock foot pedal:

• Depressing foot pedal a second time.
• Depressing brake pedal.
• Pressing foot pedal set lock/unlock button.
• Moving speed control lever or left-hand reverser to PARK position.
