Adjust Steering Angle to Disengage Differential Lock

RXA0133712-UN-16JUL13

Transmission Shortcut Button on Navigation Bar

RXA0130326-UN-11JAN13

Advanced Settings Icon → Settings Tab

RXA0137847-UN-13DEC13

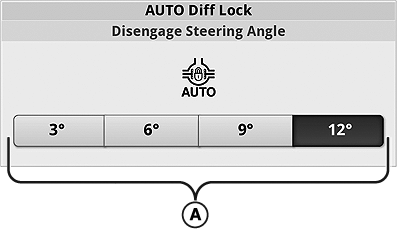

Differential Lock Steering Angle

A - Steering Angle Toggle Bar

Higher disengage steering angles require operator to turn steering wheel further before differential lock disengages. Use in high slip field conditions that require large steering corrections to maintain desired path. Differential lock remains engaged while making steering corrections across field, but automatically disengages on headland turns.

Moderate disengage steering angles are useful in loader situations. Differential lock remains engaged when entering into a pile, but quickly disengages while turning.

Lower disengage steering angles allow differential lock to disengage sooner (less movement of the steering wheel), which is useful in high traction (e.g. concrete) conditions. Differential lock remains engaged during straight-line work, while minimizing tractor jerk when disengaged or reengaged during turns.

Use Transmission Advanced Settings to adjust steering angle to disengage differential lock.

1. Select Transmission Shortcut button on Navigation Bar.
2. Select Advanced Settings icon.
3. Select Settings tab.
4. Select desired steering angle to disengage differential lock using Steering Angle toggle bar (A).
