Adjust Steering Angle to Disengage Mechanical Front-Wheel Drive (MFWD)

RXA0133712-UN-16JUL13

Transmission Shortcut Button on Navigation Bar

RXA0130326-UN-11JAN13

Advanced Settings Icon → Settings Tab

RXA0137848-UN-13DEC13

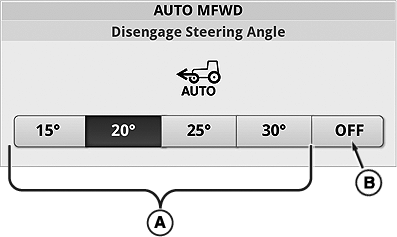

MFWD Steering Angle

A - Steering Angle Toggle Bar

B - Steering Angle OFF Button

MFWD disengages to enable tighter turning radius or to reduce ground disturbance in area of turn. To allow for different turning radius of various implements, steering angles to disengage MFWD are higher and have different settings than steering angles to disengage differential lock.

Disabling steering angle to disengage MFWD switches MFWD into “AUTO” mode allowing disengagement of MFWD based on wheel speed and depression of brake pedal, not on steering angle.

Use Transmission Advanced Settings to adjust steering angle to disengage MFWD.

1. Select Transmission Shortcut button on Navigation Bar.
2. Select Advanced Settings icon.
3. Select Settings tab.
4. Select desired steering angle to disengage MFWD using Steering Angle toggle bar (A). To disable steering angle to disengage MFWD, press Steering Angle OFF button (B).
