Connect Compatible Electronic Equipment

RXA0134922-UN-06SEP13

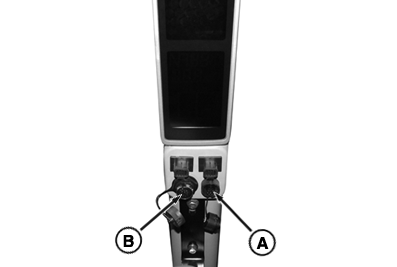

Front Right Corner Post

RXA0134921-UN-07MAR14

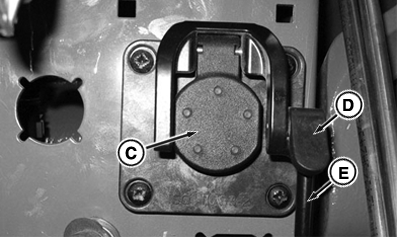

Implement connector on Tractor Rear

RXA0134924-UN-14AUG13

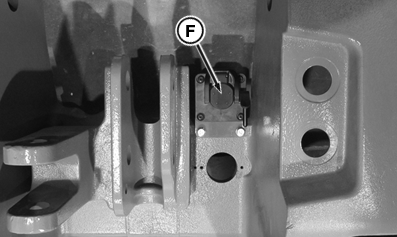

Implement connector on Tractor Front (If Equipped)

RXA0134920-UN-14AUG13

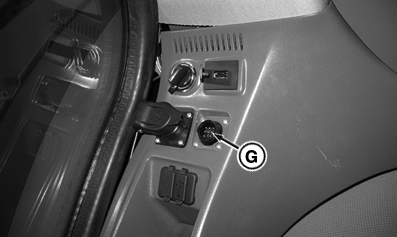

ISO 11783 Connector on Right Console

A - ISO 11786 Standard Connector (Corner Post Right)

B - GreenStar™ Connector (Corner Post Left)

C - Implement Connector (Tractor Rear)

D - Release

E - Handle

F - Implement Connector (Tractor Front) (If Equipped)

G - ISO 11783 Standard Connector (Right-Hand Console)

All 7R Series Tractors are ISOBUS ready and offer connections for implements conforming to both ISO 11786 and 11783 standards. ISO 11786 (A) provides radar or GPS speed signal. See Configuring Tractor for GPS/Radar in this section.

GreenStar™ corner post connector (B) allows any GreenStar™ display connection. See your John Deere™ dealer for compatible adapter harnesses.

IMPORTANT: USE ISO 11783 (F) only with ISO 11783 compliant components. Other uses could damage tractor electronic components.

ISOBUS ready preparation includes ISO 11783 standardized connector on right hand console and implement connector on tractor rear facilitating tractor/implement communications.

Lift the release (D) when disconnecting implement harness from connector on back of tractor.
