Hitch, SCV and PTO External Switches

CAUTION: To prevent injury or damage caused by tractor movement, be sure transmission is in PARK position before using external raise/lower switches. Stay clear of interference points when using external raise/lower switches.

RXA0112400-UN-21DEC10

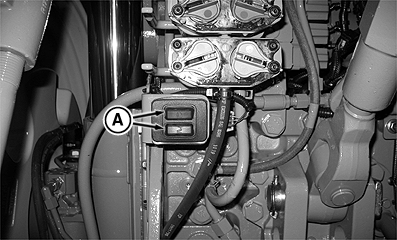

SCV Stack Mounted Rear Hitch Raise/Lower Switches

RXA0143012-UN-26JUN14

A - Hitch External Stack Mounted Switch

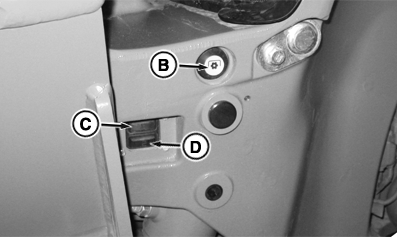

B - Front PTO Switch (If Equipped)

C - Front Hitch Raise Switch

D - Front Hitch Lower Switch

Tractors without fender extensions have external hitch raise and lower switches (A) mounted on valve stack.

Tractors equipped with front hitch may have front mounted external raise (C) and lower (D) switches. Tractors with front PTO may be external front PTO switch (B).

Fender Extension Switches (If Equipped)

RXA0108234-UN-28JUN10

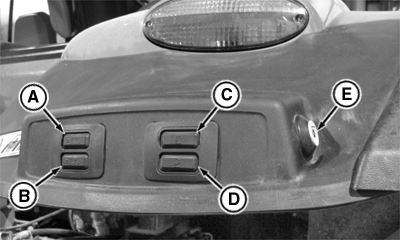

Fender Extension Rear Hitch Switches

A - Rear SCV Extend Switch (If Equipped)

B - Rear SCV Retract Switch (If Equipped)

C - Rear Hitch Raise Switch

D - Rear Hitch Lower Switch

E - External Rear PTO Switch (If Equipped)

Tractors with optional rear fender extensions may have optional raise (C) and lower (D) switches on rear fenders. SCV III extend (A) and retract (B) switches are available for hydraulic center link. External rear PTO switch (E) is also available.
