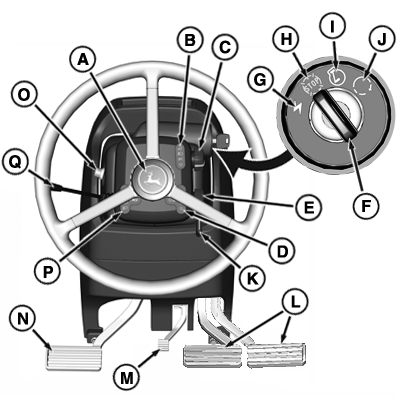

Front Console

RXA0142885-UN-19JUN14

Front Console

A - Steering Wheel Telescope Release

B - Light Selection Cluster

C - Light Selector Knob

D - Windshield Wiper Cluster

E - Windshield Wiper Control Knob

F - Key Switch

G - Accessories

H - OFF (STOP)

I - Run

J - Start

K - Steering Column Tilt Release Lever

L - Brake Pedals

M - Steering Wheel Tilt Release

N - Clutch Pedal

O - Starting Aid Switch (If Equipped)

P - Turn Signal Icon, Road/Field Light Icon and Horn Icon

Q - Turn Signal Lever/Horn
