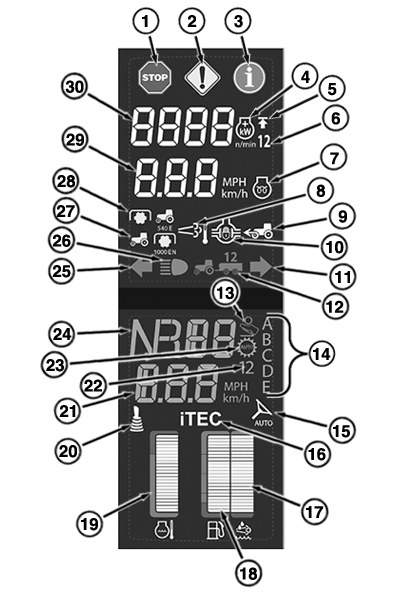

Corner Post Display

RXA0135726-UN-26SEP13

Corner Post Display

1 - Stop Indicator

2 - Service Alert Indicator

3 - Information Indicator

4 - Intelligent Power Management Indicator

5 - FieldCruise™ Indicator

6 - FieldCruise™ Selection (1 or 2)

7 - Engine Preheat Indicator (For 6.8L Engines Only)

8 - Exhaust Filter Cleaning Indicator

9 - MFWD Indicator (If Equipped)

10 - Differential Lock Indicator (If Equipped)

11 - Right Turn Indicator

12 - Trailer Indicator (If Equipped)

13 - Foot Pedal Mode Indicator (If Equipped)

14 - Transmission Range Indicators

15 - AutoTrac™ Indicator

16 - iTEC™ Indicator

17 - Diesel Exhaust Fluid (DEF) Gauge (FT4/Stage IV Engines Only)

18 - Fuel Gauge

19 - Coolant Temperature Gauge

20 - ISOBUS Auxiliary Mode Indicator

21 - Set Speed

22 - IVT™ AutoPowr™ Forward Speed Band Indicator (If Equipped)

23 - Automatic Shifting Indicator

24 - Current Gear/Range

25 - Left Turn Indicator

26 - High Beam Indicator

27 - Rear PTO Indicator (If Equipped)

28 - Front PTO Indicator (If Equipped)

29 - Vehicle Ground Speed

30 - Tachometer
