Digital Indicators—Tachometer, Ground Speed, Transmission, and Set Speed

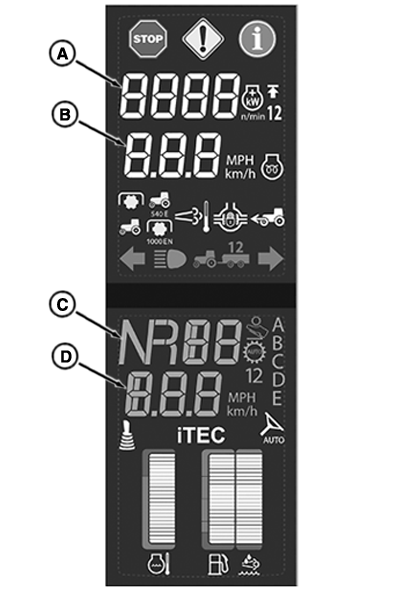

RXA0135728-UN-26NOV13

A - Tachometer

B - Travel Speed Indicator

C - Transmission Information

D - Set Speed Indicator

A—Tachometer: Displays engine speed in multiples of 10. If “- - -” is displayed, no speed signal is being received.

B—Travel Speed Indicator: Displays travel speed in either miles per hour or kilometers per hour, depending on operator selected units (U.S. or Metric).

If “- - -” is displayed, no speed signal is being received.

C—Transmission Information: Shows if transmission is in Neutral—N, Forward—F, Reverse—R, or Park—P.

If “- - -” is displayed, no gear signal is being received.

IVT™ /AutoPowr™ Only: Shows speed bands 1 or 2 and speed settings.

D—Set Speed Indicator: Shows what speed is set using set speed adjuster.
