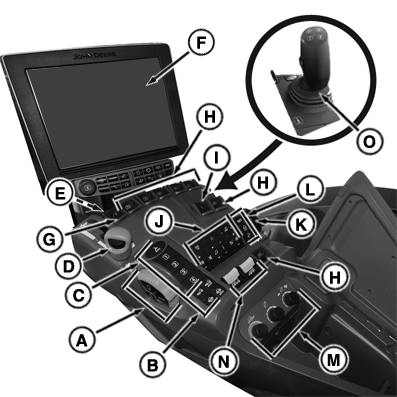

CommandARM™ with Generation 4 CommandCenter™ Display

RXA0144152-UN-31JUL14

CommandARM™

A - Hand Throttle Control

B - Differential Lock & Mechanical Front-Wheel Drive (MFWD) Buttons

C - iTEC™ & AutoTrac™ Resume

D - Speed Control Lever/Transmission Shift Lever

E - SCV Control Lever Lock/ISB Lock

F - Generation 4 CommandCenter™

G - Rear Hitch Control Lever

H - SCV Control Levers

I - Front Hitch Control Lever (If Equipped)

J - Climate, Radio and Lighting Controls

K - Depth Adjust Hitch Dial

L - Set/Lock/Resume Buttons

M - Load Depth/Upper Limit/Drop Rate Hitch Dials

N - Front and Rear PTO Control Levers (If Equipped)

O - Joystick (If Equipped)
