CommandARM™ SCV Controls

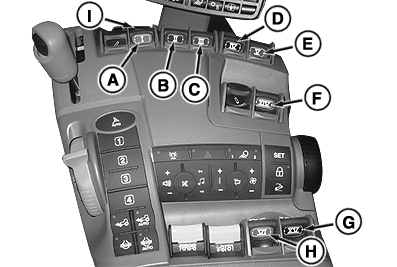

RXA0144151-UN-31JUL14

SCV Control Levers

RXA0133735-UN-17JUL13

Controls Setup Icon

A - SCV 1 Control Lever

B - SCV 2 Control Lever

C - SCV 3 Control Lever

D - SCV 4 Control Lever

E - SCV 5 Control Lever

F - Front Hitch Midstack/SCV 14

G - SCV 15 Control Lever (If Equipped)

H - SCV 6 Control Lever (If Equipped)

I - SCV Control Lever Lock

NOTE: Reconfigurable SCV Controls allows operator to match device with various implement functions. This process is called “Assignment” input to function. See ”Controls Setup” in CommandCenter™ section of this Operator’s Manual for more information.

SCV control lever lock (I) locks out control of SCVs and Front Hitch by SCV control levers and front hitch control lever only.

Controls Setup icon appears on SCV control levers that are reconfigurable.
