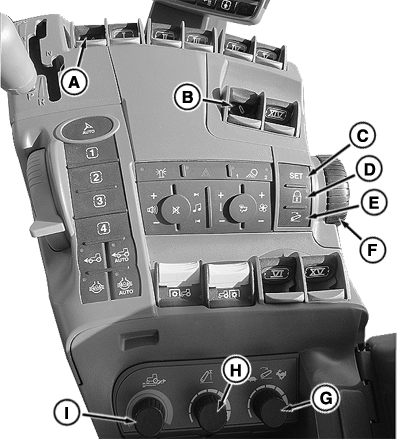

CommandARM™ Rear and Front Hitch Control Levers

RXA0144150-UN-31JUL14

Hitch Controls

A - Rear Hitch Control Lever

B - Front Hitch Control Lever (If Equipped)

C - Set Point Button

D - Rear Hitch Control Lever Lock

E - Return to Lower Set Point

F - Depth Adjust Hitch Dial

G - Drop Rate Hitch Dial

H - Upper Limit Hitch Dial

I - Load Depth Hitch Dial

Hitch adjustments shown are for rear hitch. For more information, see Hitch section of this Operator’s Manual.
