CommandARM™ Joystick (If Equipped)

RXA0133231-UN-17JUN13

Joystick

RXA0133735-UN-17JUL13

Controls Setup Icon

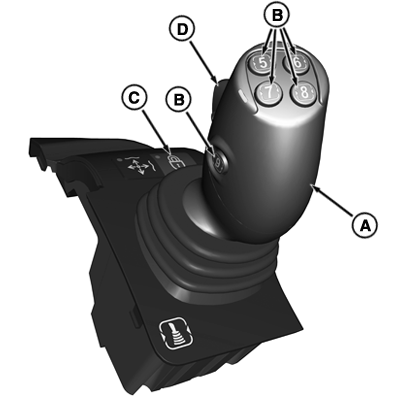

A - Joystick (If Equipped)

B - Joystick Buttons

C - Joystick Lock Button

D - Joystick Rocker Switch

NOTE: Joystick buttons 5-9 (B) cannot be reconfigured at this time. Function may become available for future use.

Controls Setup Icon appears around controls that may be setup to control other functions. Review Controls Setup Page (see Controls Setup in CommandCenter™ section of this Operator’s Manual) to verify function of each control.

NOTE: Process called “Assignment” allows operator to assign Joystick various tractor or implement functions. See Controls Setup in CommandCenter™ section of this Operator’s Manual for more information.

Only joystick (front-to-back and side-to-side movements) and rocker switch can be reconfigured.
