Connecting/Disconnecting Hydraulic Hoses—Mid-Mount Valve Stack or Front Valves (If Equipped)

RXA0126745-UN-26AUG13

Joystick, SCV Control Lever Locks

RXA0129741-UN-12APR13

RXA0135061-UN-20AUG13

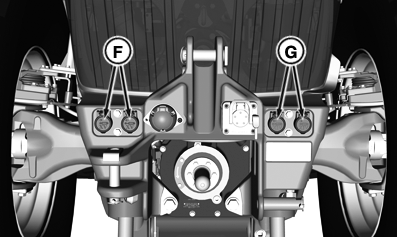

Front Hitch Couplers

A - Joystick Lock

B - SCV Control Lever Lock

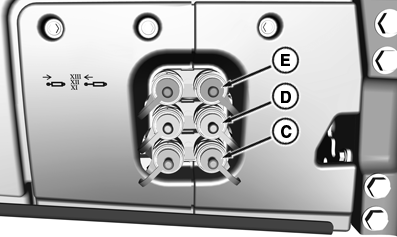

C - Mid-Mount SCV XI

D - Mid-Mount SCV XII

E - Mid-Mount SCV XIII

F - Front SCV XV

G - Front SCV XIV

CAUTION: Escaping fluid under pressure can penetrate the skin causing serious injury. Avoid the hazard by relieving pressure before disconnecting hydraulic or other lines.

If an accident occurs, see a doctor immediately. Any fluid injected into the skin must be surgically removed within a few hours or gangrene may result.

Prevent possible personal injury. Shut off engine, move SCV lever to neutral position and lock out SCV controls before attaching implements to prevent implement movement.

Engage SCV control lever lock and Joystick lock [(A) and (B)] before attaching or detaching hydraulic hoses to prevent equipment and possible personal injury.

IMPORTANT: Hydraulic hoses can fail due to physical damage, kinks, age, and exposure. Check hoses regularly.

Any dirt, dust, or other foreign material can damage hydraulic system. Thoroughly clean hydraulic hoses and SCVs before connecting implement to tractor.

Steam cleaning or using a high pressure washer in the area around the SCV connections and electronics may damage equipment. Any pressure washer exceeding 6895 kPa (69 bar) (1000 psi) should be kept a minimum of 200 mm (8 in.) away from connections.

NOTE: See Attaching Implement and Control System in TouchSet™ Depth Control Section of this Operator’s Manual.

Hydraulic couplers at front of tractor and/or at mid-mount valve (if equipped) are operated by either a joystick or SCV lever. Optional equipment available: Loader or front hitch with hydraulic outlets

1. Lock out SCV controls.

   • Joystick— Press Joystick lock (A).
   • CommandARM™— Press SCV control lever lock (B).



2. Clean dust caps/plugs.

3. IMPORTANT: Be sure to correctly connect remote hydraulic hoses to couplers. If hose connections are reversed, machine will not respond to system controls as expected. Mid-mount SCV ports are arranged opposite of front hitch and rear SCV stack ports.

   Rear SCV or Front Hitch	Mid-Mount SCV
   Extend=Left Port	Extend=Right Port
   Retract=Right Port	Retract=Left Port

   Pull off caps/plugs to expose couplers.

4. Push hoses firmly into couplers.

   • If equipped with loader, see procedure in loader Operator's Manual to identify correct hose connections.



SCV Number	Color	Front Function
SCV XI	Green	Mid-Mount SCV
SCV XII	Blue	Mid-Mount SCV
SCV XIII	Brown	Mid-Mount SCV
SCV XIV	Black	Front SCV
SCV XV	Violet	Front SCV

Flow Chart (Midstack SCV)
