Hydraulic Motor Return and Case Drain Kits

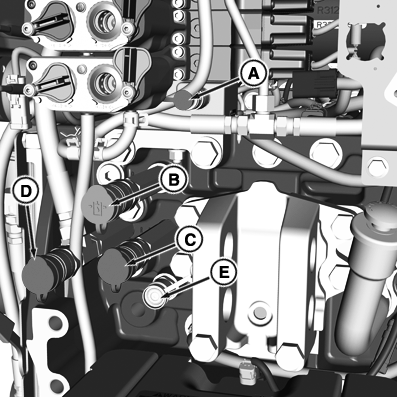

RXA0129299-UN-02NOV12

A - Load Sense Coupler

B - Pressure Coupler

C - Return Coupler

D - Return Coupler

E - Sump Coupler (Motor Case Drain)

Port (E) is used as a motor case drain for low pressure, low flow applications. Motor case drain is used when return oil flow may be too high for motor return port and could cause back pressure that may damage seals in motor. Motor return and case drain kits are available from your John Deere™ dealer.

Motor Return Couplers (C and D) are located below Pressure couplers.

Using motor return coupler will prevent:

• Inadvertent reverse operation
• Pressurization of auxiliary function return line
• Potential flow checking of return-side SCV coupling

Examples of implements which cannot withstand high pressure applied to both couplers are:

• Hydraulic motors which have return and case drain couplers connected. Failure of motor housing or shaft seals may result if return line is pressurized.
• Auxiliary control valves located on implement may allow unexpected movement of cylinders or not function correctly if return line pressure is too high.

NOTE: Motors without over-running check valves should be connected to motor return coupler (C, D) to prevent return line pressurization when SCV is returned to neutral.
