Hitch Auxiliary Raise Kit

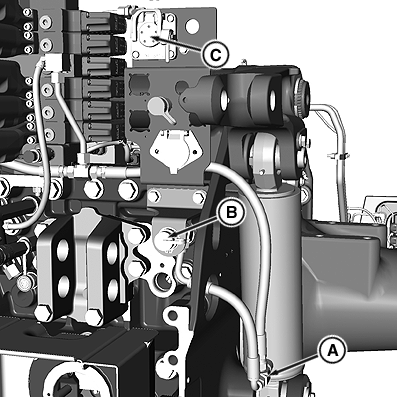

RXA0113560-UN-09FEB11

A - Hitch Lift Cylinder Connection

B - Auxiliary Raise Coupler

C - Jumper Harness

Hitch Auxiliary Raise kit is available as a field installed option from your John Deere™ dealer.

Implement joystick allows operation of an SCV and 3-point hitch using one lever. Kit will connect to right side hitch lift cylinder (A).

Connect auxiliary raise hose to coupler (B).

NOTE: 9-pin connector and jumper harness (C) are required for hitch auxiliary raise kit. Jumper harness disables hitch valve and allows hitch valve to be operated with an SCV.
