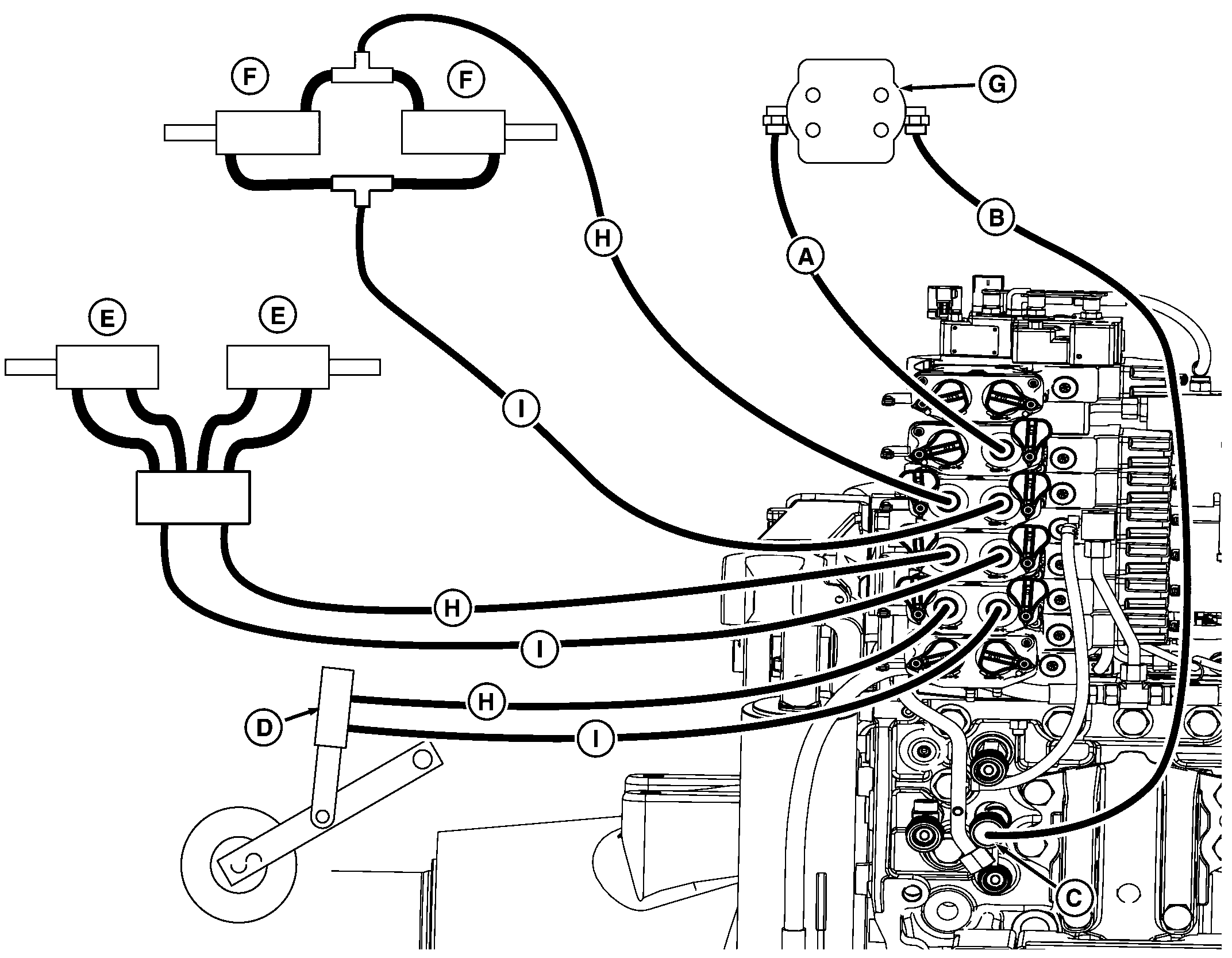

Implement Connection Example 3—Motor Application Using SCV Retract and Auxiliary Motor Return

RXA0113668-UN-11FEB11

A - Pressure Line

B - Return Line

C - Motor Return Coupler

D - Raise/Lower Cylinder

E - Marker

F - Fold

G - Hydraulic Motor

H - Extend Coupler Line

I - Retract Coupler Line

In this application, motor (G) receives pressure oil from the retract port on SCV. Return oil is routed to motor return port. When the motor is shut off, the SCV lever is moved to float position. Since return oil is routed to motor return port, no special hose tip is required.
