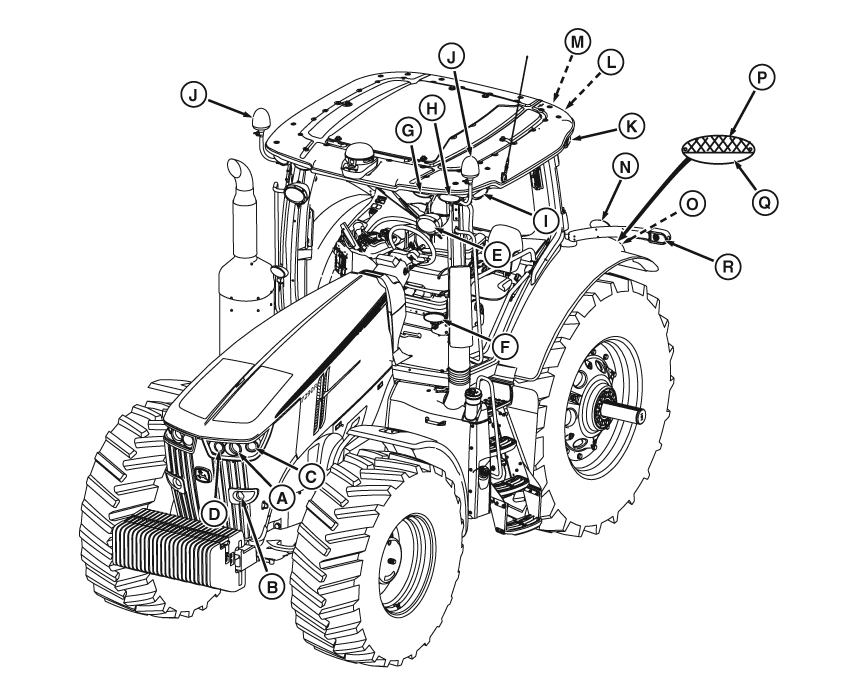

Light Identification

RXA0131224-UN-08MAR13

A - Road Lights (High Beam)

B - Road Lights (Low Beam)

C - Outer Hood Lights

D - Inner Hood Lights

E - Loader/Road Lights (Low and High Beam)

F - Beltline Lights

G - Front Inner Roof Lights

H - Front Outer Roof Indicator Lights (Amber)

I - Front Side Roof Lights

J - Rotary Beacon Lights (If Equipped)

K - Rear Side Roof Lights

L - Rear Outer Roof Indicator Lights (Amber)

M - Rear Inner Roof Lights

N - Rear Fender Lights

O - Rear Fender Tail/Brake/Indicator Lights

P - Amber Lens

Q - Red Lens

R - Extremity Indicator Lights

All lights are same for left and right side of tractor.

White lights are any exterior tractor lights that do not have colored lenses/bulbs.

Lights are configured on CommandCenter™ light page.(See Configurable Lights in this section of this Operator’s Manual.).
