Jack Up the Tractor - Lifting Points and Support Stand Placement

The illustrations show the recommended lifting points for jacking up the tractor. Use appropriate and suitable lifting device.

RXA0132143-UN-03MAY13

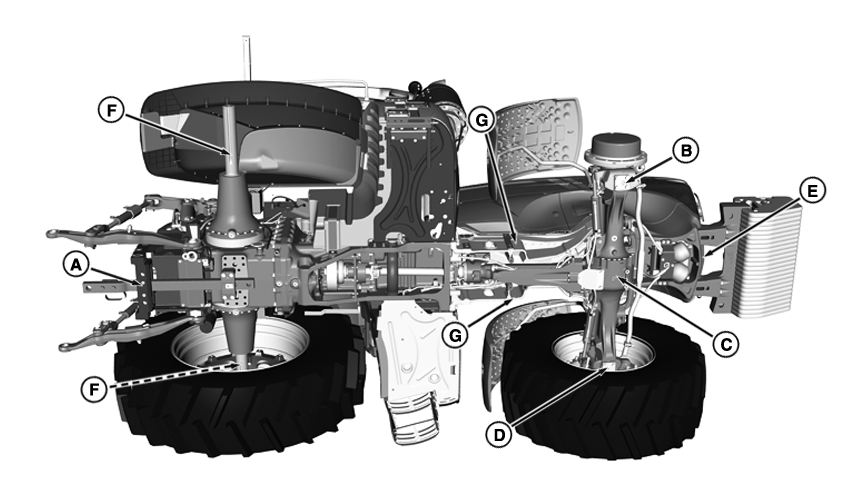

Underside View, Lift Points/Support Stand Placement

RXA0126239-UN-04MAY12

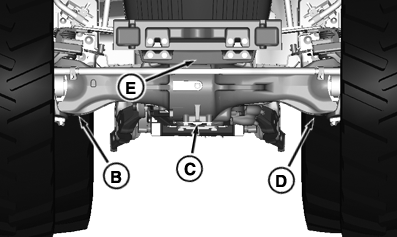

Front Lift Points

RXA0126241-UN-04MAY12

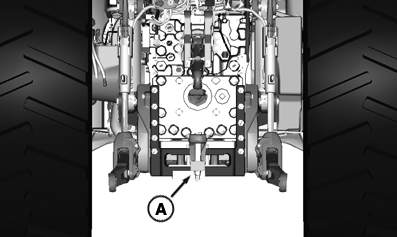

Rear Lift Point

A- Raise Rear of Tractor, e.g. to Remove Rear Wheel	B- Raise Right End of Front Axle, e.g. to Remove Right Front Wheel	C- Raise Center of Axle (Use Wooden Wedges to Prevent Axle from Tilting)	D- Raise Left End of Front Axle, e.g. to Remove Left Front Wheel	E- Raise Front End of Tractor under the Basic Weight
F- Support Stand Placement on Rear Axles.	G- Support Stand Placement on side of chassis.

RXA0113923-UN-22FEB11

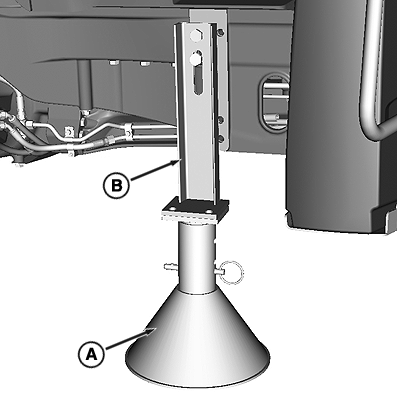

JT07211 Rear Differential Support/ KJD10539 Support Stand Adapter

A - JT07211 Rear Differential Support Stand (2 used)

B - KJD10539 Support Stand Adapter (2 used)

1. CAUTION: Use approved lifting equipment only. Jack up tractor on firm, level ground only. Before doing any further work on tractor, first secure it using suitable support stands. The special John Deere tools shown can be used for this purpose. These support stands are available from your John Deere Dealer.

   Disconnect battery ground cable.

2. Remove front weights or front hitch, if equipped.

3. Raise front of tractor and install JT07211 Rear Differential Support Stand (A) with KJD10539 Support Stand Adapter (B) using M20 x 40 mm (10.9 grade) cap screws to both sides of tractor.

RXA0084749-UN-25OCT05

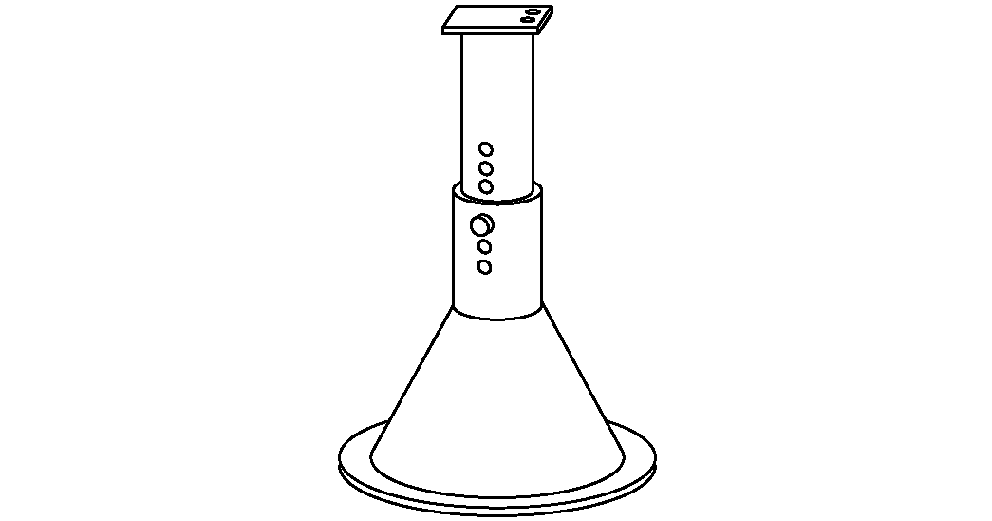

JT07211 Support Stand

KJD10539-UN-14DEC06

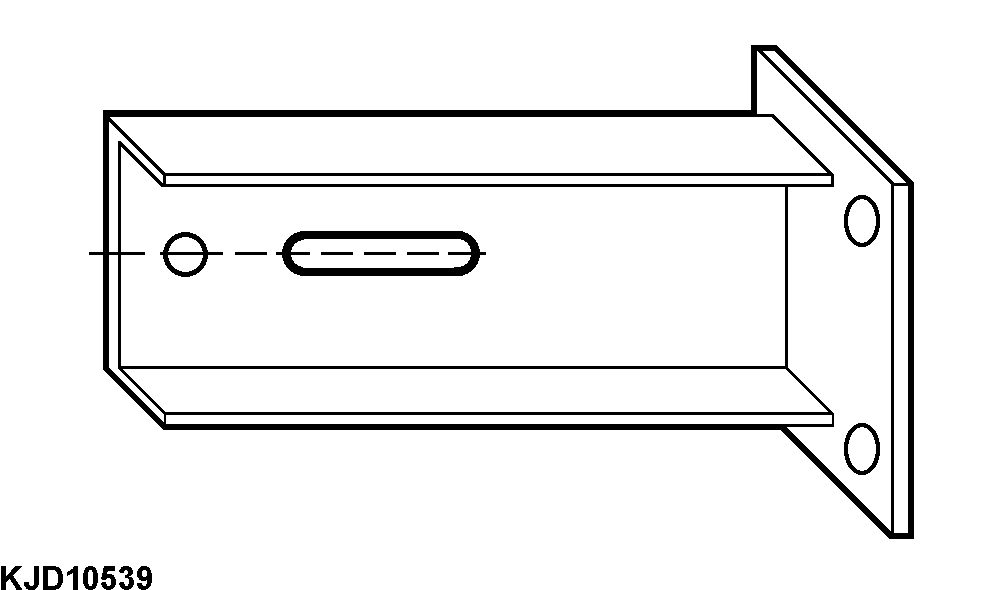

KJD10539 Support Stand Adapter
