Configuring Selective Control Valves - Standard Mode

RXA0133709-UN-16JUL13

SCV Shortcut Button on Navigation Bar

RXA0131602-UN-19AUG13

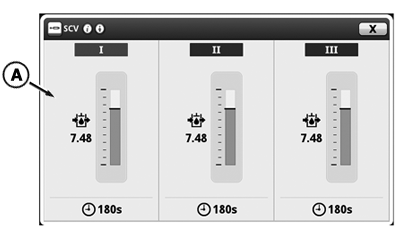

SCV Main Page

RXA0131601-UN-19AUG13

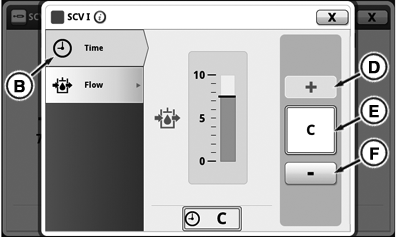

SCV Detent Time

RXA0127957-UN-19AUG13

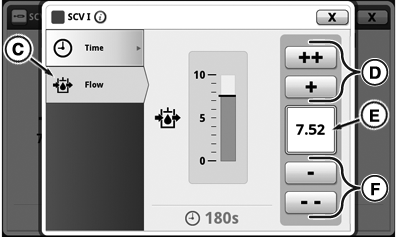

SCV Detent Flow

RXA0131231-UN-09MAY13

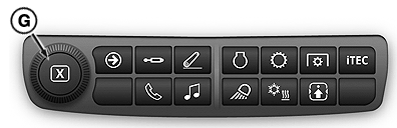

Display Shortcut Bar

A - SCV Main Page

B - Detent Time Tab

C - Detent Flow Tab

D - Increase Time/Flow buttons

E - Input Box

F - Decrease Time/Flow buttons

G - Adjusting Dial

SCVs in standard mode have one detent time and one detent flow settings which apply to both extend and retract.

Press SCV shortcut button on Navigation Bar or follow alternative path.

1. Select one of the individual SCVs (A) to access Standard Mode.

2. Select Time tab (B).

   NOTE: Detent time displays amount of time in input box (E). Pressing (+) will increase time in 1 second increments up to 10, then in increments of 2 seconds up to 20, then increases every 5 seconds to 30, then by 30 seconds up to C for continuous. Pressing (-) will decrease time setting by the same increments.

3. To increase detent time press button (D) or to decrease detent press button (F). Also turning adjustment dial (G) can be used to increase or decrease detent time settings.

4. Select Flow tab (C).

   NOTE: Flow is displayed in increments of 0.04 beginning at 0.04 through 10 located in input box (E). Pressing (+) will increase flow by 0.04, pressing (++) increases flow by 1.00, and by pressing (-) and (- -) will decrease flow setting by the same increments.

5. To increase flow press buttons (D) or to decrease press buttons (F). Also turning adjusting dial (G) can be used to increase or decrease flow settings.
