SCV Control Lever—Neutral Position

RXA0135070
RXA0135070-UN-20AUG13

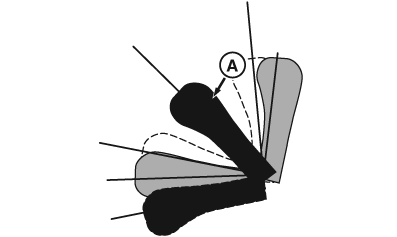

SCV Control Lever - (Neutral)

A - Neutral Position

Neutral position (A) allows flow to continue until timed detent expires. If no timed detent is commanded, then flow is turned off.

NOTE: SCV control lever should be in neutral position at tractor startup.

Levers in extend or retract positions automatically return to neutral when released. Float position remains detented.

Any position other than neutral is ignored until lever is cycled to neutral after engine startup.

RD47322,000023D-19-20130825
