SCV Control Lever—Extend and Extend Detent Position

Extend Position

RXA0129323-UN-22JUL13

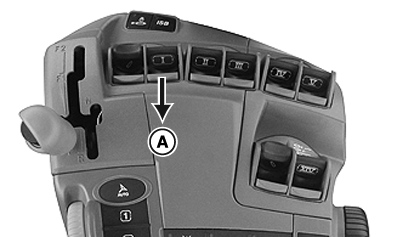

SCV Control Lever Extend and Extend Detent

A - Extend Position (Pull Rearward)

Pull lever (A) rearward of neutral. This extends the cylinder at a rate that varies with how far rearward the lever is pulled.

Pull lever slightly rearward to extend the remote cylinder slowly.

Pull lever rearward against the first detent notch to extend the remote cylinder at maximum rate. (See Adjusting SCV Flow Rate in this section) Lever returns to neutral and flow stops when released.

NOTE: Time Setting is ignored in the retract position.

Extend Detent Position

Pull lever (A) rearward to “click” detent position and release. Lever will return to neutral position, but flow will continue at maximum rate. (See Adjusting SCV Flow Rate and Adjusting Timed Detent in this section.)

Flow timing begins when the lever returns to center after being in the detent position for less than 0.8 seconds. SCV flow time should be adjusted so cylinder will be fully extended when time has elapsed.

Detent can be canceled by moving SCV lever slightly forward or rearward from neutral after lever has returned to neutral or by holding lever in extend position for more than 0.8 seconds after lever has entered detent position.

NOTE: Detent positions are ignored at start up until lever is cycled to NEUTRAL.
