SCV Control Lever—Retract and Retract Detent Position

Retract Position

RXA0129324-UN-22JUL13

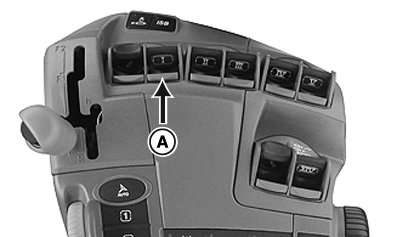

SCV Control Lever Retract and Retract Detent

A - Retract Position (Push Forward)

Push lever (A) forward of neutral. This retracts cylinder at a rate that varies with how far forward the lever is pushed.

Push the lever slightly forward to retract the remote cylinder slowly.

Push the lever forward against the first detent notch to retract the remote cylinder at maximum rate. (See Adjusting SCV Flow Rate in this section) Lever returns to neutral and flow stops when released.

NOTE: Time setting is ignored in retract position.

Retract Detent Position

Push lever (A) forward to "click" detent position and release. Lever will return to neutral position, but flow will continue at maximum rate if detent time setting is non-zero. (See Adjusting SCV Flow Rate and Adjusting Timed Detent in this section.)

Flow timing begins when the lever returns to center after being in the detent position for less than 0.8 seconds. SCV flow time should be adjusted so cylinder will be fully retracted when time has elapsed.

Detent can be canceled by moving SCV lever slightly forward or rearward from neutral after lever has returned to neutral or by holding lever in retract position for more than 0.8 seconds after lever entered detent position.

NOTE: Detent positions are ignored at start up until lever is cycled to NEUTRAL.
