Laser Scraper—for Scrapers Equipped with Scraper Control Unit

NOTE: Used primarily in areas requiring automated laser guidance system for scraper applications.

RXA0133709-UN-16JUL13

SCV Shortcut Button on Navigation Bar

RXA0128092-UN-10SEP12

Menu Button → Tractor Settings Tab → SCV Button

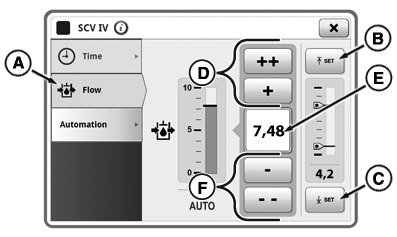

RXA0136288-UN-23OCT13

Feature SCV Settings Page

RXA0131233-UN-09MAY13

Adjusting Dial on Navigation Bar

A - Detent Flow Tab

B - Upper Setpoint Button

C - Lower Setpoint Button

D - Increase Flow

E - Input Box

F - Decrease Flow

G - Adjusting Dial

Press SCV shortcut button on Navigation Bar or follow alternative path:

1. Connect tractor to implement.

2. Select Menu Button.

3. Select Tractor Settings tab.

4. Select SCV Button.

5. Select Feature SCV Mode.

6. Select Detent Flow tab (A).

7. To increase flow press button (D) or to decrease press button (F). Also turning adjusting wheel (G) can be used to obtain desired flow setting.

8. Select Upper Setpoint button (B) to set upper setpoint to current position.

9. Select Lower Setpoint button (C) to set lower setpoint to current position.

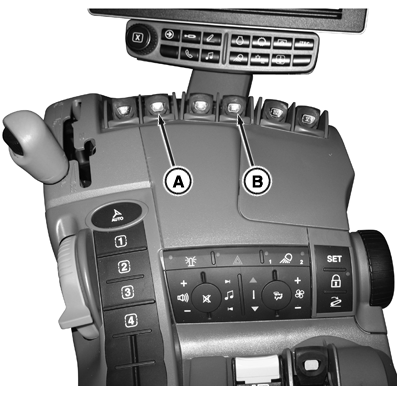

RXA0136915-UN-13NOV13

SCV Switches

A - SCV I Control Lever

B - SCV III Control Lever

CAUTION: Avoid personal injury or death. Moving scraper control unit, connectors, or linkages, when engine is running, may cause unexpected movement. Stay clear of implement when starting engine.

Tractor selective control valves (SCV I and/or SCV III) are used to electronically control raising, lowering, and setting of implement depth, without leaving the cab.

Control lever (A) is used to manually control SCV I and activate an automatic scraper control system.

Control lever (B) is used to manually control SCV III and activate a second automatic scraper control system.
