Controls Identification
RXA0127892-UN-29AUG12

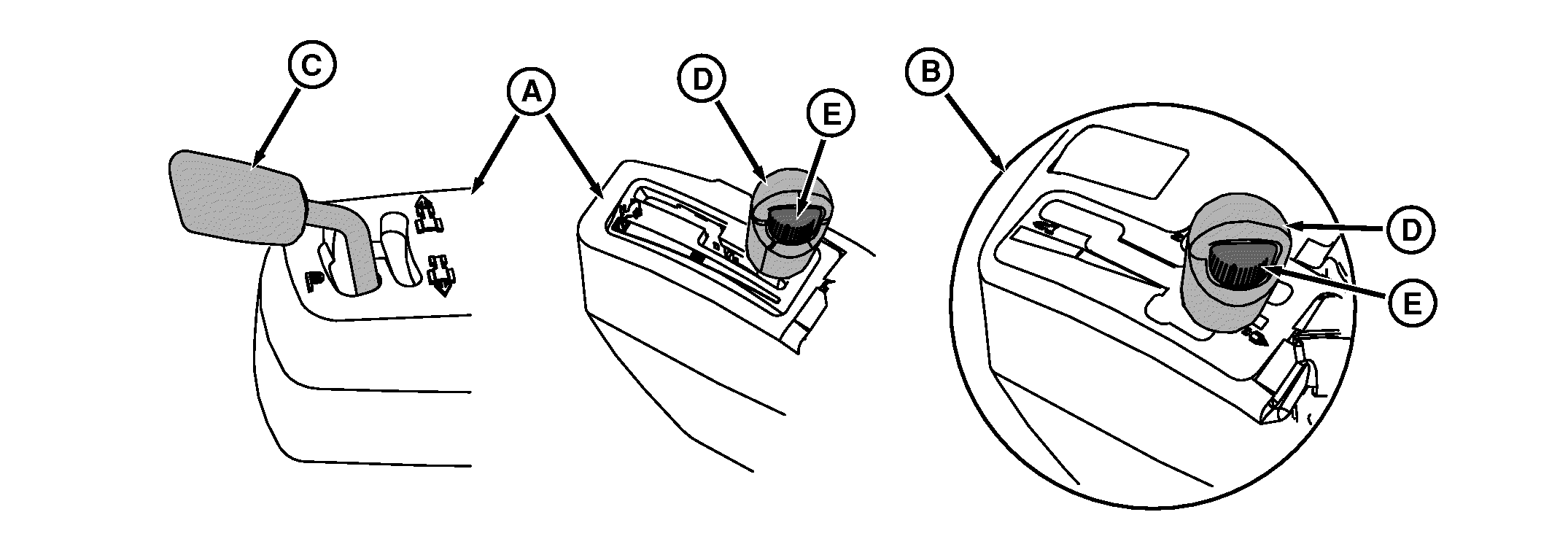

AutoPowr™ Controls
A - Left-Hand Reverser Controls
B - Right-Hand Reverser
C - Left-Hand Reverser Lever
D - Speed Control Lever
E - Set Speed Adjusting Wheel
AutoPowr™ transmission provides infinite ground speeds in forward mode from 50 meters per hour (164 feet per hour) to 50 km/h (31 mph) depending on tractor specifications. Reverse mode provides infinite ground speeds from 50 meters per hour (164 feet per hour) to 20 km/h (12.4 mph). Maximum speeds may vary slightly due to tire size.AutoPowr™ tractors are equipped with either left-hand reverser or right-hand reverser. Left-hand configuration requires two levers. Left-hand reverser lever (C) controls tractor direction, park and neutral. Second lever, speed control lever (D), is located on CommandARM™ and controls ground speed.
Right-hand reverser option consists of right-hand reverser lever (B) located on CommandARM™ and controls tractor direction, park, neutral, and ground speed.
There are two variable speed bands in forward direction on all tractors. Tractors equipped with left-hand reverser have two-speed bands in reverse. Tractors equipped with right-hand reverser have single reverse band.
Set speeds are maximum ground speeds in each speed band. Speed control lever must be pushed to end of slot to achieve set speeds. Rotate set speed adjusting wheel (E) clockwise to increase speed and counterclockwise to decrease set speed.
|
AutoPowr is a trademark of Deere & Company |
RD47322,0000322-19-20140103 |
