Left-Hand and Right-Hand Reverser Shift Patterns

RXA0133408-UN-09DEC13

Right-Hand Reverser

RXA0100319-UN-26JAN09

Left-Hand Reverser

RXA0137698-UN-09DEC13

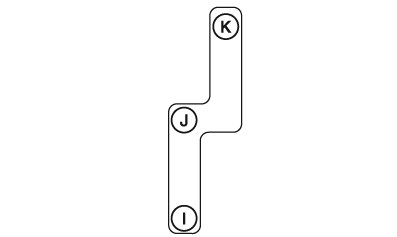

Left-Hand Reverser Speed Lever

A - Park

B - Neutral

C - Reverse

D - Power Zero™

E - Scroll Position

F - Forward Speed Band 1

G - Forward Speed Band 2

H - Forward

I - Minimum Speed

J - Maximum Forward or Reverse Set Speed 1

K - Maximum Forward or Reverse Set Speed 2

Park (A): Engages park brake to hold tractor stationary preventing tractor from rolling; "P" appears on corner post display.

Neutral (B): Disengages park brake, allowing tractor to roll, but does not transmit power to wheels; "N" appears on corner post display.

Reverse (C): Transmits power to wheels for rearward travel; "R" appears on corner post display.

Power Zero™ (D): Hand-held zero position temporarily holds tractor stationary on relatively flat surface.

Scroll Position (E): Scrolls through set speeds on corner post display continuously while tractor is not moving.

Forward Speed Band 1 (F): Transmits power to wheels for forward travel; "F1" appears on corner post display.

Forward Speed Band 2 (G): Transmits power to wheels for forward travel; "F2" appears on corner post display.

Forward (H): Transmits power to wheels for forward travel; "F" appears on corner post display.

Minimum Speed (I): Transmits power to wheels in direction selected.

Maximum Forward and Reverse Set Speed 1 (J): Transmits power to wheels in direction selected.

Maximum Forward and Reverse Set Speed 2 (K): Transmits power to wheels in direction selected.
