Adjust Set Speeds

RXA0068281-UN-27AUG03

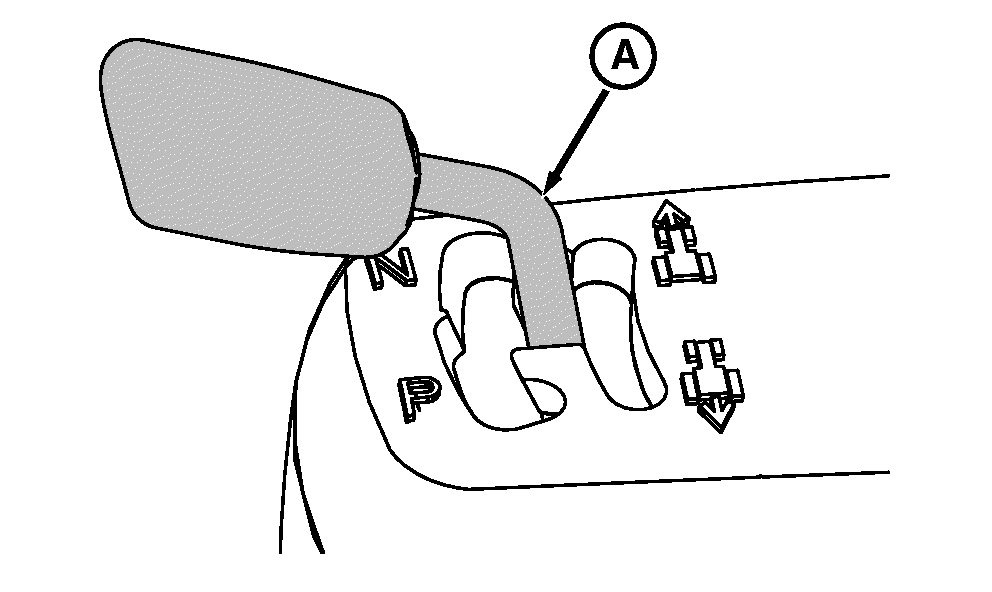

Left-Hand Reverser Shown

RXA0130020-UN-22AUG13

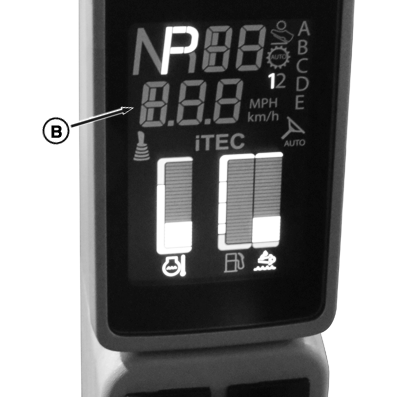

Corner Post Display

RXA0127885-UN-22AUG13

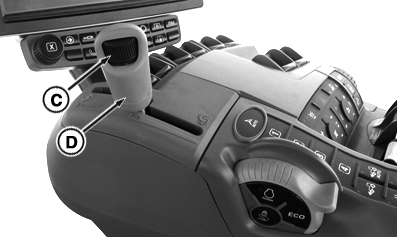

Speed Control Lever

A - Left-Hand Reverser

B - Corner Post Display

C - Set Speed Adjuster

D - Speed Control Lever

CAUTION: Avoid unexpected rapid acceleration. Check and adjust set speeds before putting tractor in motion.

Turn key switch to RUN position (for tractors with right-hand reverser, engine must be running to change set speeds).

Move lever (A) to Scroll position. Forward and reverse set speeds scroll on corner post display pausing at each speed for 2 seconds.

Adjust each speed when displayed by rotating set speed adjuster on speed control lever clockwise to increase set speed value or counterclockwise to decrease it.

NOTE: Set speed adjustments may affect corresponding set speed of opposite direction (see Adjusting Reverse/Forward Set Speed Ratio in this section).

On corner post display, set speed of selected speed band displays in orange and ground speed of tractor displays in white letters. Set speed can be adjusted while tractor is moving by rotating set speed adjuster (C). Increasing set speed value increases ground speed. Decreasing set speed value decreases ground speed. New set speed shows on display (B).

Select set speed approximately 3.2 km/h (2 mph) higher than desired working speed to obtain maximum productivity where precise forward speed is not critical (such as plowing). Tractor reaches higher set speed value during no load or light load condition.

Maximum ground speed of selected speed band is attained at full throttle when speed control lever (D) is pushed fully forward to end of slot in respective speed band.
