Set Speeds—Guidelines and Examples

RXA0053043-UN-26APR01

Example 1

RXA0053045-UN-26APR01

Example 2

RXA0053049-UN-26APR01

Example 3

RXA0053047-UN-26APR01

Example 4

Value of Set Speed 1 is always at least 10% less than value of Set Speed 2. This ensures smooth transition between speed bands and is illustrated in following examples.

NOTE: F1 refers to Forward mode for Set Speed in speed band 1. F2 refers to Forward mode for Set Speed in speed band 2.

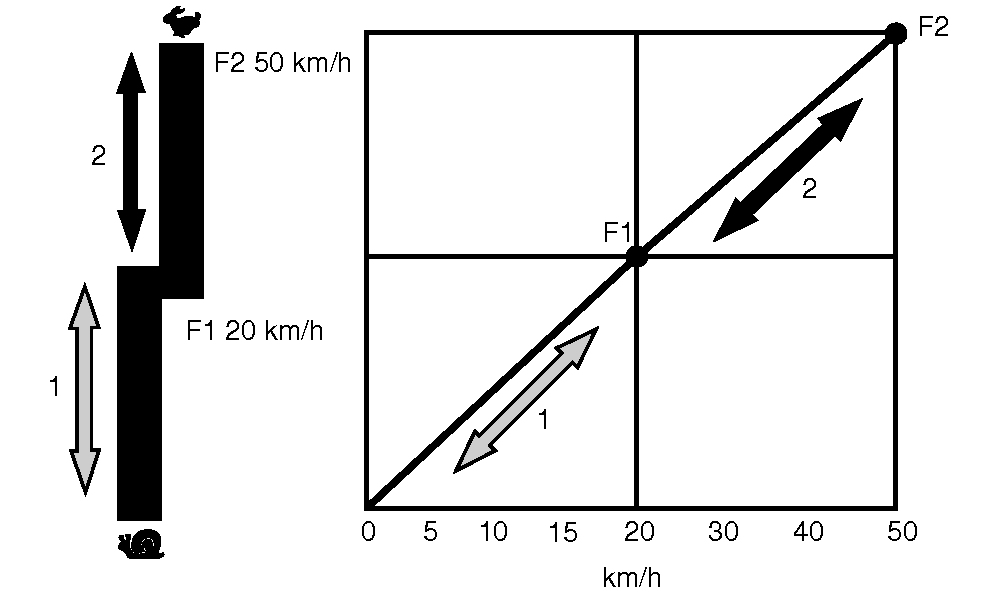

Example 1: Maximum Forward Set Speeds are selected for each speed band.

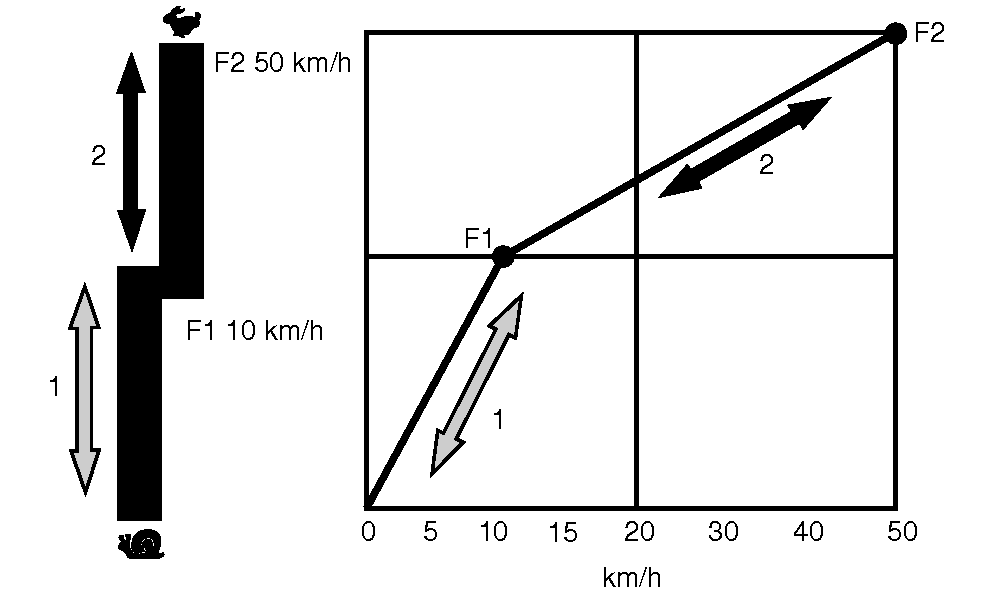

Example 2: Value of Set Speed 1 is reduced to 10 km/h (6 mph). Set Speed 2 value is not changed, but lower portion of speed band 2 has automatically decreased to meet top end of speed band 1.

NOTE: Actual set speed increases or decreases at least 10% of adjusted speed band and ranges up to 12.5%. 10% is used in illustrations of Examples 3 and 4, and can differ by 2.5% of speeds shown.

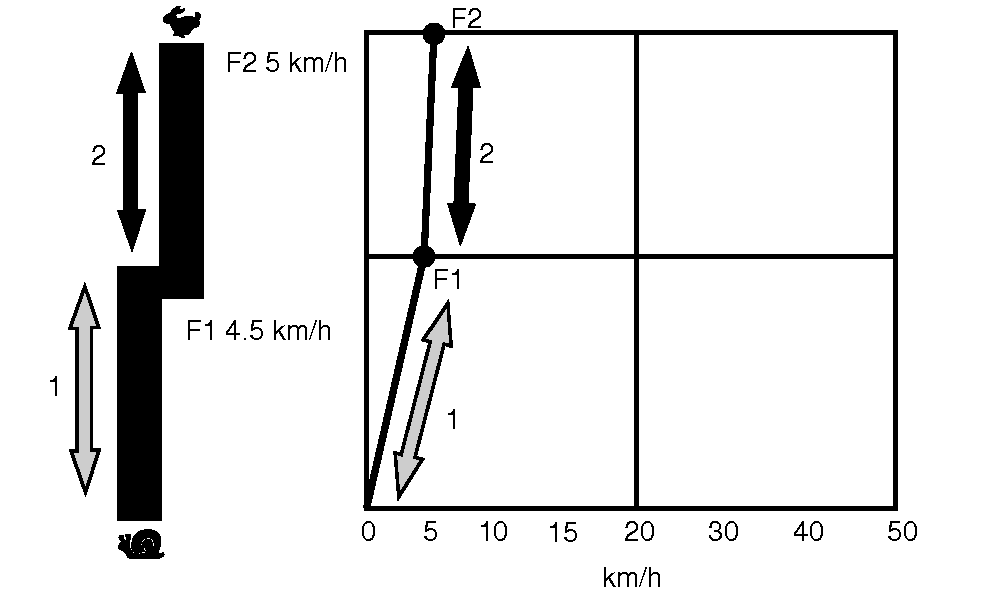

Example 3: Set Speed 2 is reduced to 5 km/h (3 mph). Set Speed 1 automatically decreases to 4.5—4.3 km/h (2.8—2.7 mph), 10—12.5% below new value of Set Speed 2.

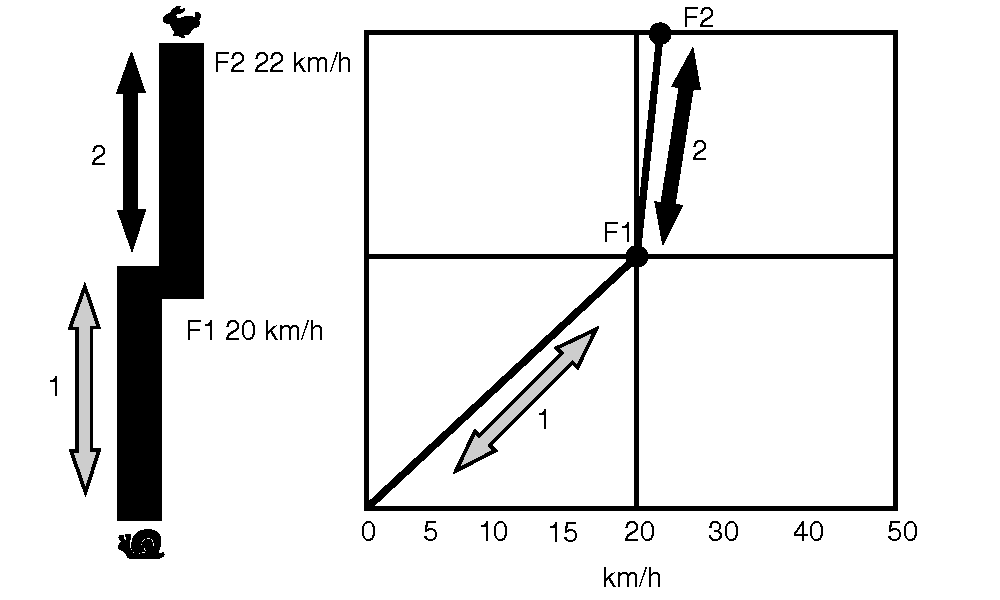

Example 4: Set Speed 1 is increased to 20 km/h (12.4 mph), which is higher than value of Set Speed 2. Set Speed 2 automatically increases to 22—22.5 km/h (13.7—14.0 mph), 10—12.5% above new value of Set Speed 1.
