Adjust Reverse/Forward Set Speed Ratio

Reverse/Forward Ratio can be set to operate independently of each other or from 0.3 to 1.3 times as fast (in 0.1 increments). Forward and Reverse Set Speeds are same at 1.0 setting (1 to 1 ratio).

Maximum reverse speed is up to 20 km/h (12 mph) regardless of ratio.

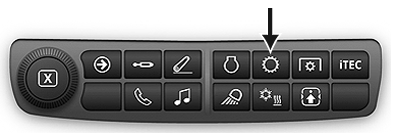

RXA0133712-UN-16JUL13

Transmission Shortcut Button on Navigation Bar

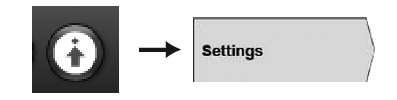

RXA0130326-UN-11JAN13

Advanced Settings Icon → Settings Tab

RXA0127891-UN-29AUG12

Reverse/Forward Ratio List

A - Reverse/Forward Module

B - Reverse/Forward Ratio button

Press Transmission Shortcut Button on Navigation Bar.

1. Press Advanced Settings icon.

2. Press Settings tab.

3. Press Reverse/Forward Ratio button (B) to access list of reverse/forward ratio options.

   Forward Set Speed is 4 km/h (2.5 mph) and Ratio is:	Reverse Set Speed km/h (mph) is:
   0.3	1.2 (0.4)
   0.4	1.6 (0.8)
   0.5	2.0 (1.2)
   0.6	2.4 (1.5)
   0.7	2.8 (1.75)
   0.8	3.2 (2.0)
   0.9	3.6 (2.2)
   1.0	4.0 (2.5)
   1.1	4.4 (2.7)
   1.2	4.8 (3.0)
   1.3	5.2 (3.2)
   Independent	No ratio because reverse and forward set speeds function independent of each other. Reverse Set Speed is limited to be no more than 5 km/h (3 mph) faster than Forward Set Speed.
