Efficiency Manager™ on e23™ Transmission in Manual Mode

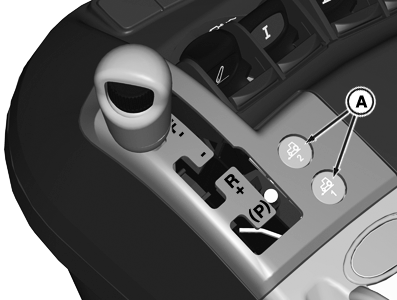

RXA0131632-UN-26MAR13

Speed Buttons with RH Reverser

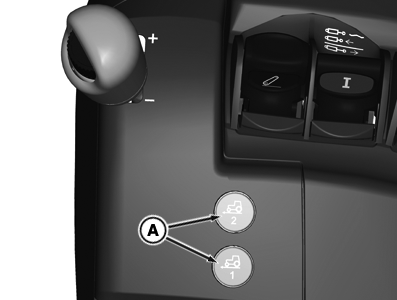

RXA0131631-UN-26MAR13

Speed Buttons with LH Reverser

A - Set Speed Buttons

Efficiency Manager™ is activated in Manual Mode by pressing either of the set speed buttons (A) on the CommandArm™.

• Pressing the same set speed button a second time in Manual Mode will disengage Efficiency Manager™.
• Bumping the shift lever in Manual Mode when efficiency manager is active, disengages Efficiency Manager™, shifts gears and changes engine speed to match the engine throttle position.
• All other features and functions of Efficiency Manager™ are the same between Full AUTO Mode and Custom Mode.

IMPORTANT: When disabling Efficiency Manager™, the engine rpm changes to match throttle position, possibly resulting in tractor acceleration.
